RNA4901-XL Radial Roller Bearing
Request Information
Return to list

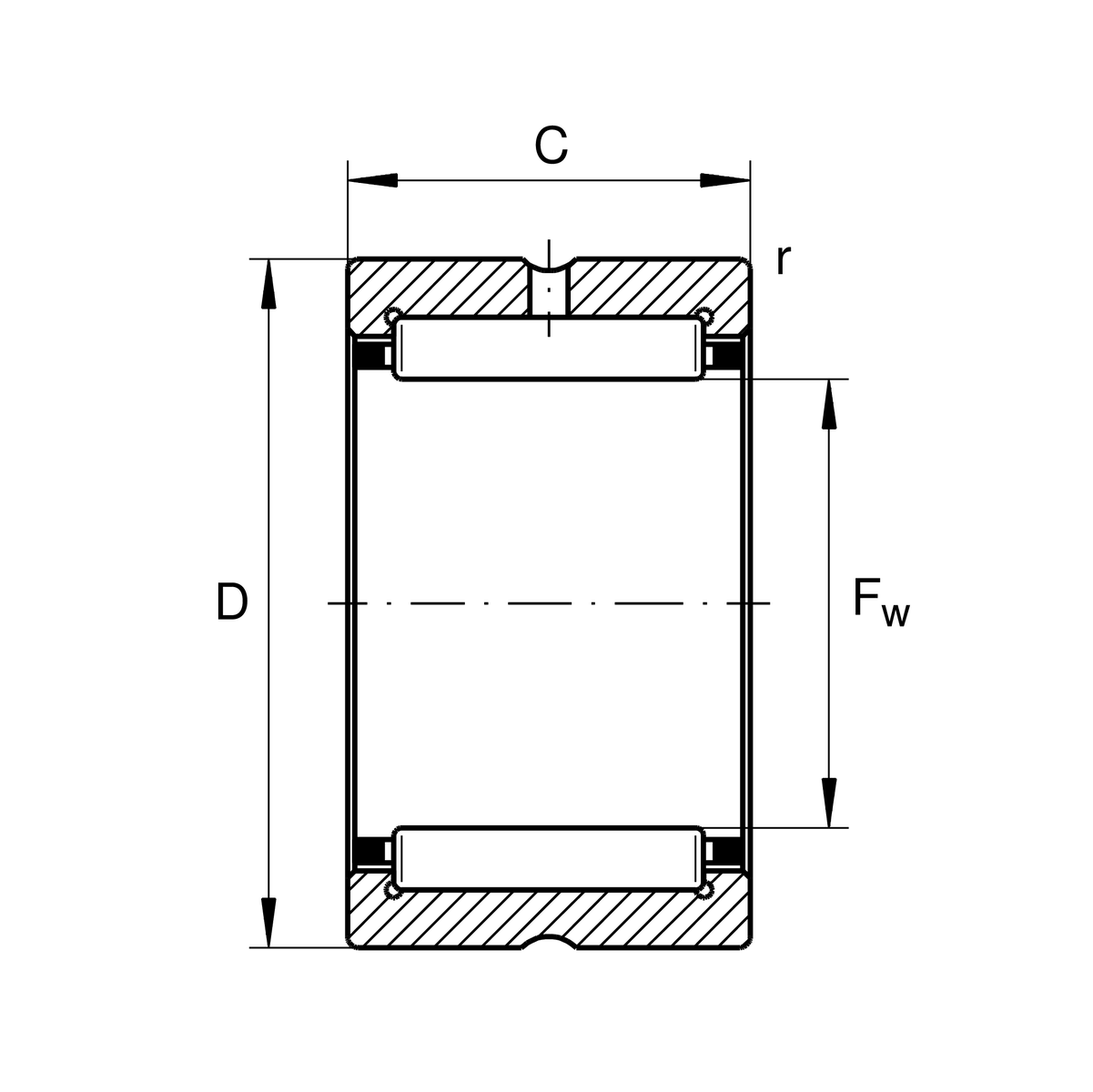

VIEW CAD DRAWING

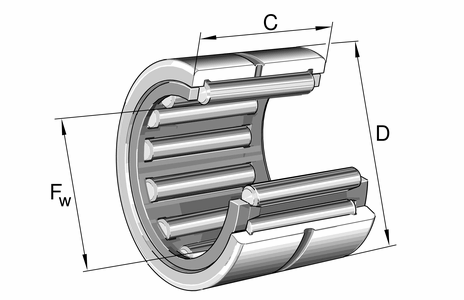

View structure diagram
View structure diagram
DOWNLOADS
Domax
®
Precision rolling bearings
Main Dimensions & Performance Data
Fw
16 mm
D
24 mm
B
13 mm
Cr
10600 N
Cor
10900 N
Cur
1970 N
Reference speed
15300 rpm
Limiting speed
23200 rpm
Mounting dimensions
rmin
0.3 mm
Minimum chamfer size
C
13 mm
Outer ring width
Temperature range
Tmin
-30 °C
Minimum operating temperature
Tmax
120 °C
Maximum operating temperature
