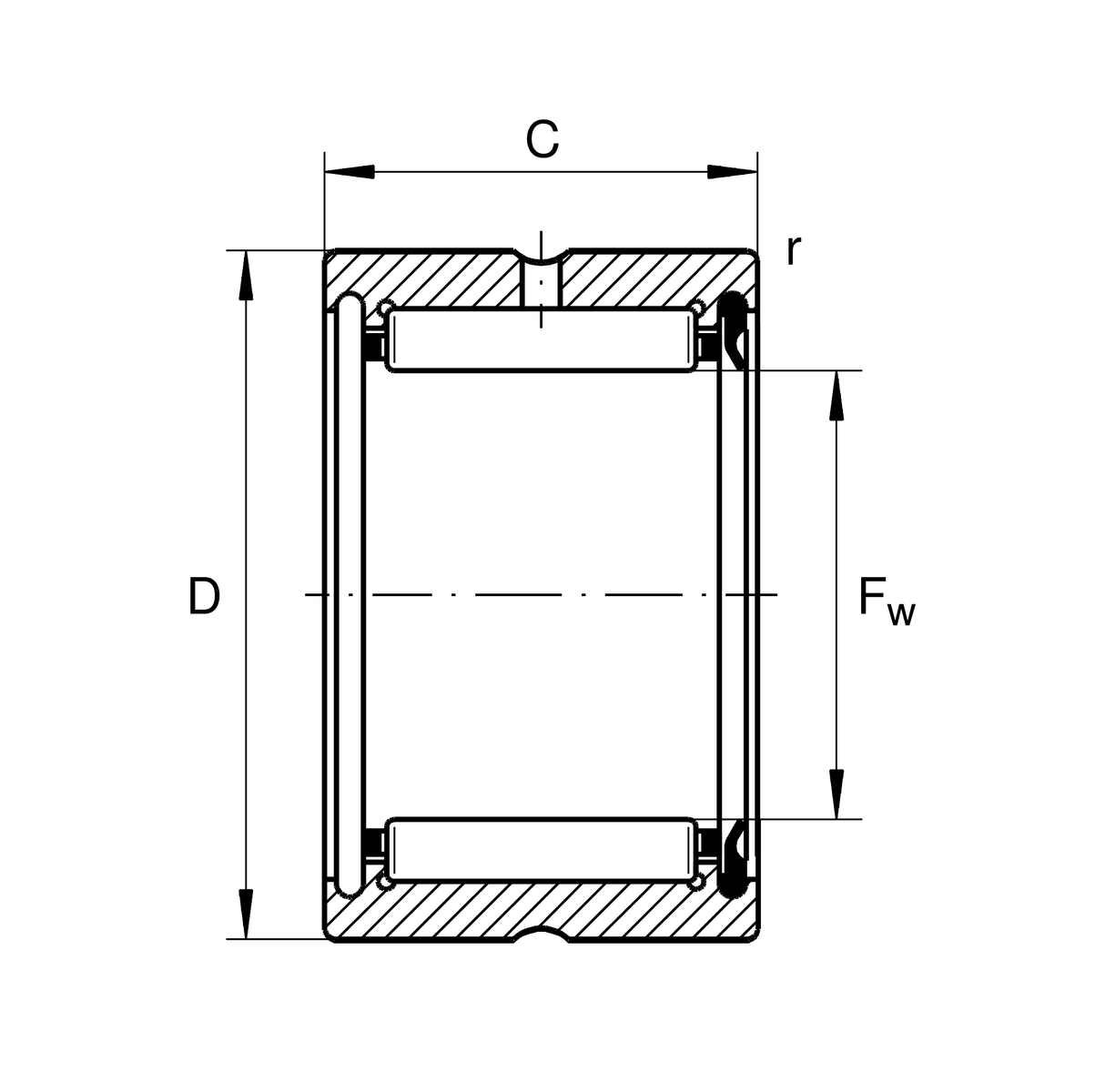

Main Dimensions & Performance Data

Fw

 14 mm

D

 22 mm

Cr

 7700 N

Cor

 6900 N

Cur

 1390 N

Limiting speed

 14800 rpm

Mounting dimensions

rmin

 0.3 mm Minimum chamfer size

C

 13 mm Outer ring width

Temperature range

Tmin

 -20 °C Minimum operating temperature

Tmax

 100 °C Maximum operating temperature
