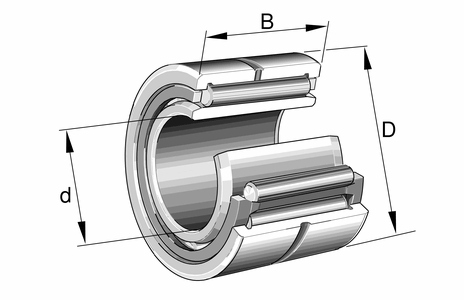

Main Dimensions & Performance Data

d

 15 mm

D

 35 mm

B

 20 mm

Cr

 27500 N

Cor

 28000 N

Cur

 5000 N

Reference speed

 9400 rpm

Limiting speed

 18500 rpm

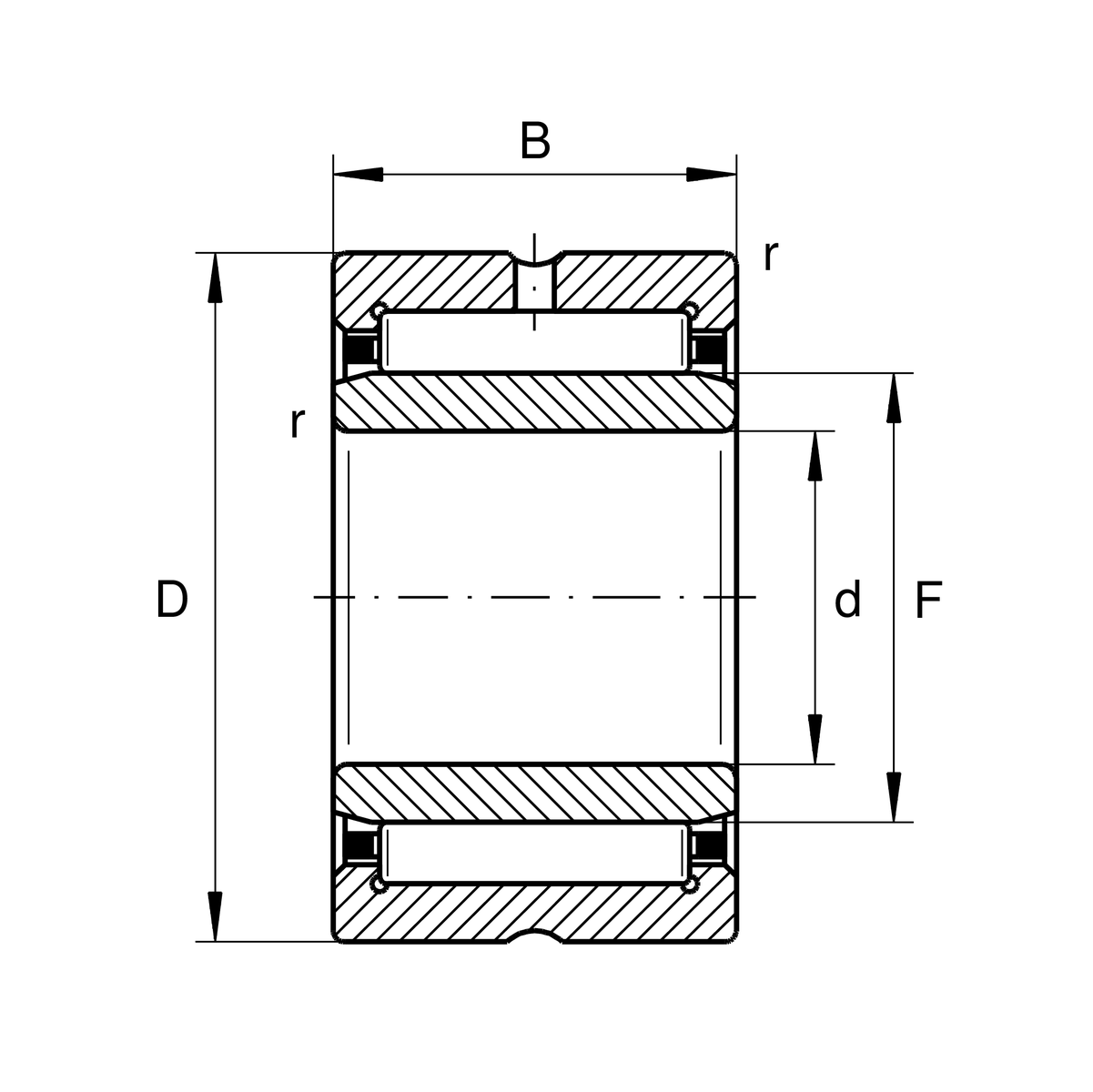

Mounting dimensions

rmin

 0.6 mm Minimum chamfer size

F

 22 mm Inner race diameter

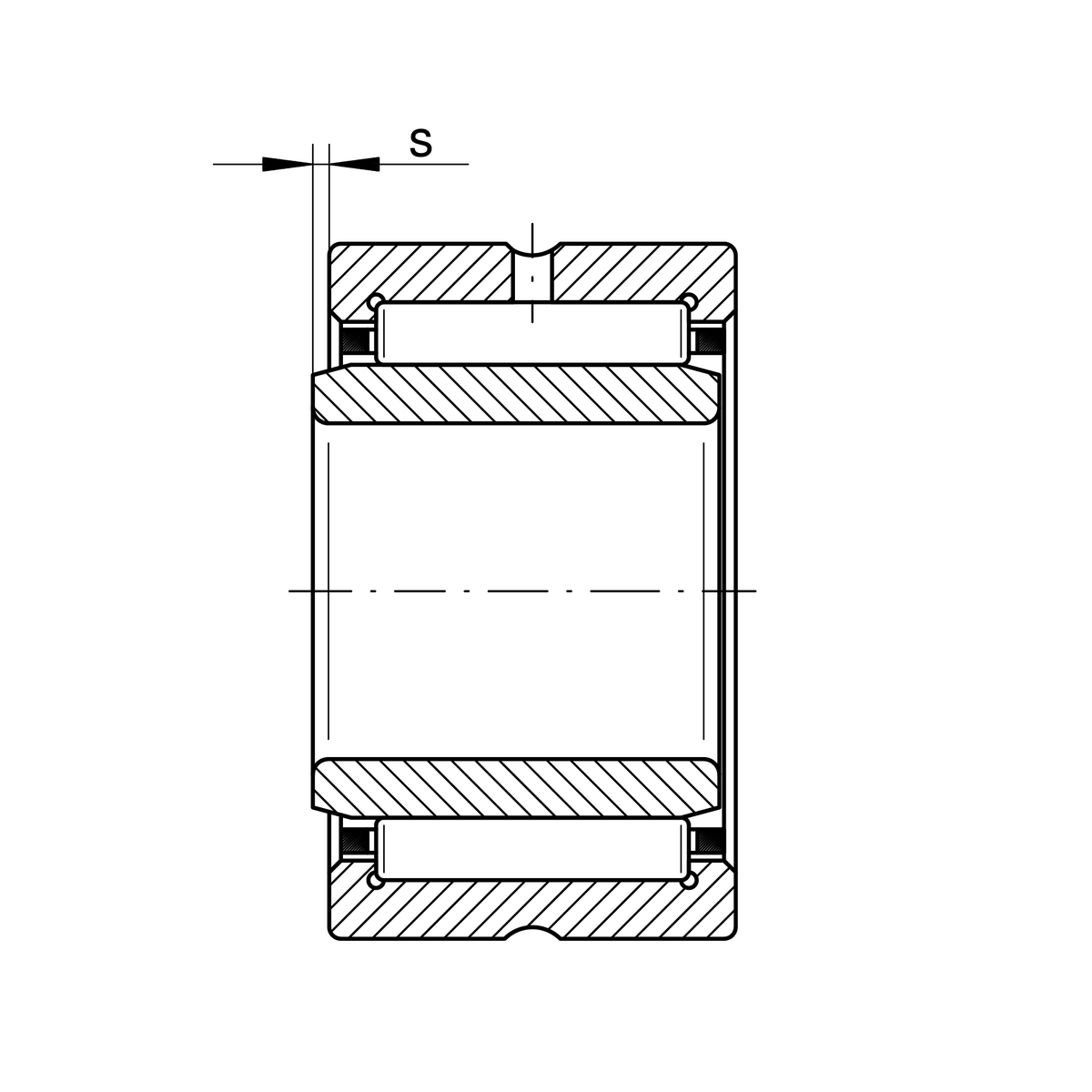

s

 0.5 mm Axial displacement

Temperature range

Tmin

 -30 °C Minimum operating temperature

Tmax

 120 °C Maximum operating temperature
