Main Dimensions & Performance Data

d

 60 mm

D

 130 mm

Ca

 390000 N

Coa

 1220000 N

Cua

 N

Reference speed

 1080 rpm

Limiting speed

 3050 rpm

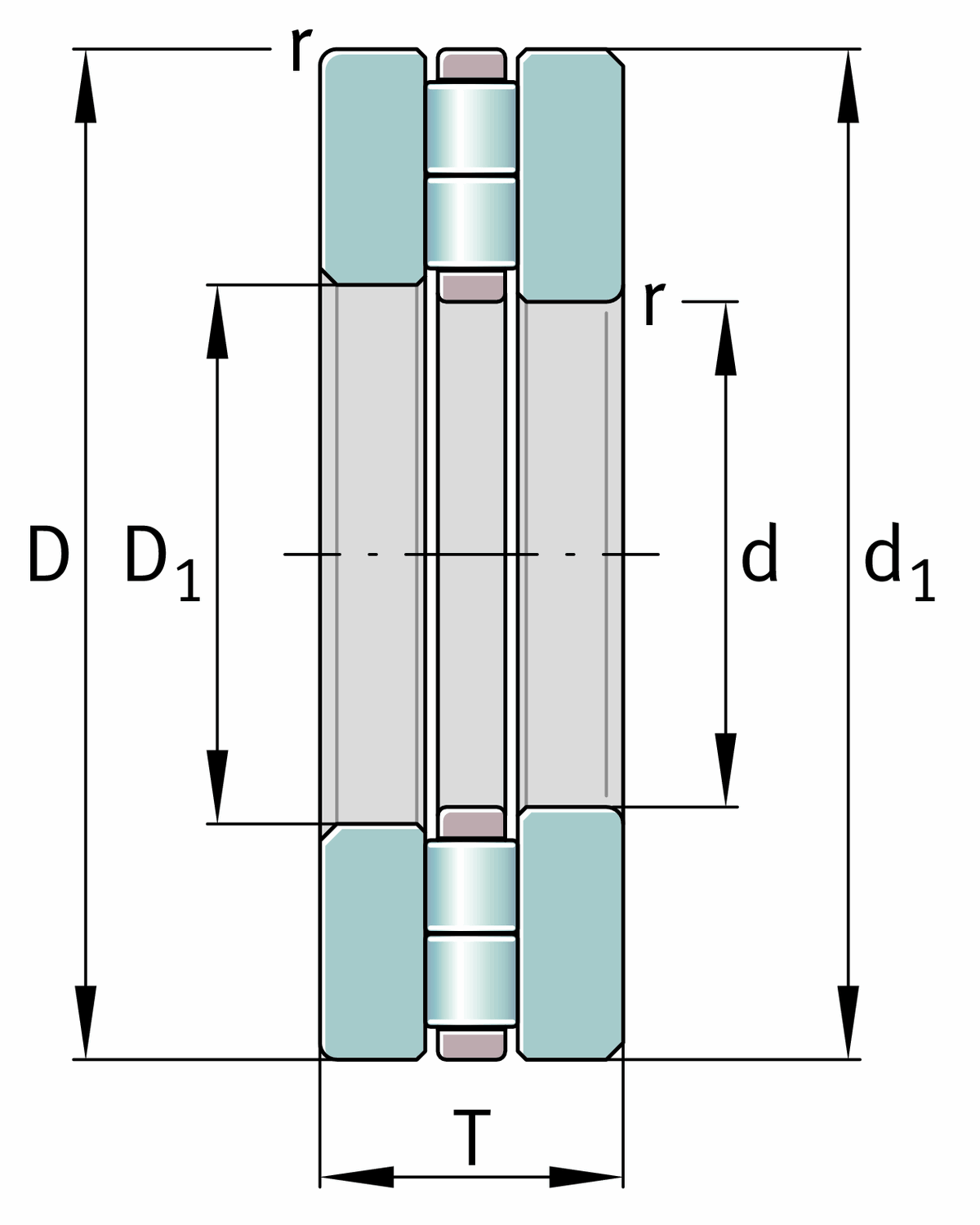

Mounting dimensions

D1

 62 mm Inner diameter of seat ring

d1

 130 mm Shaft ring crack diameter

rmin

 1.5 mm Minimum chamfer size

Temperature range

Tmin

 -20 °C Minimum operating temperature

Tmax

 120 °C Maximum operating temperature
