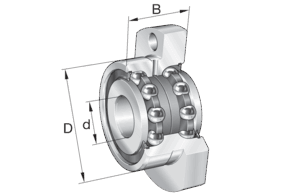

Main Dimensions & Performance Data

d

 6 mm

D

 19 mm

B

 12 mm

Ca

 4550 N

Coa

 5700 N

Cua

 N

Reference speed

 14000 rpm

Limiting speed

 22800 rpm

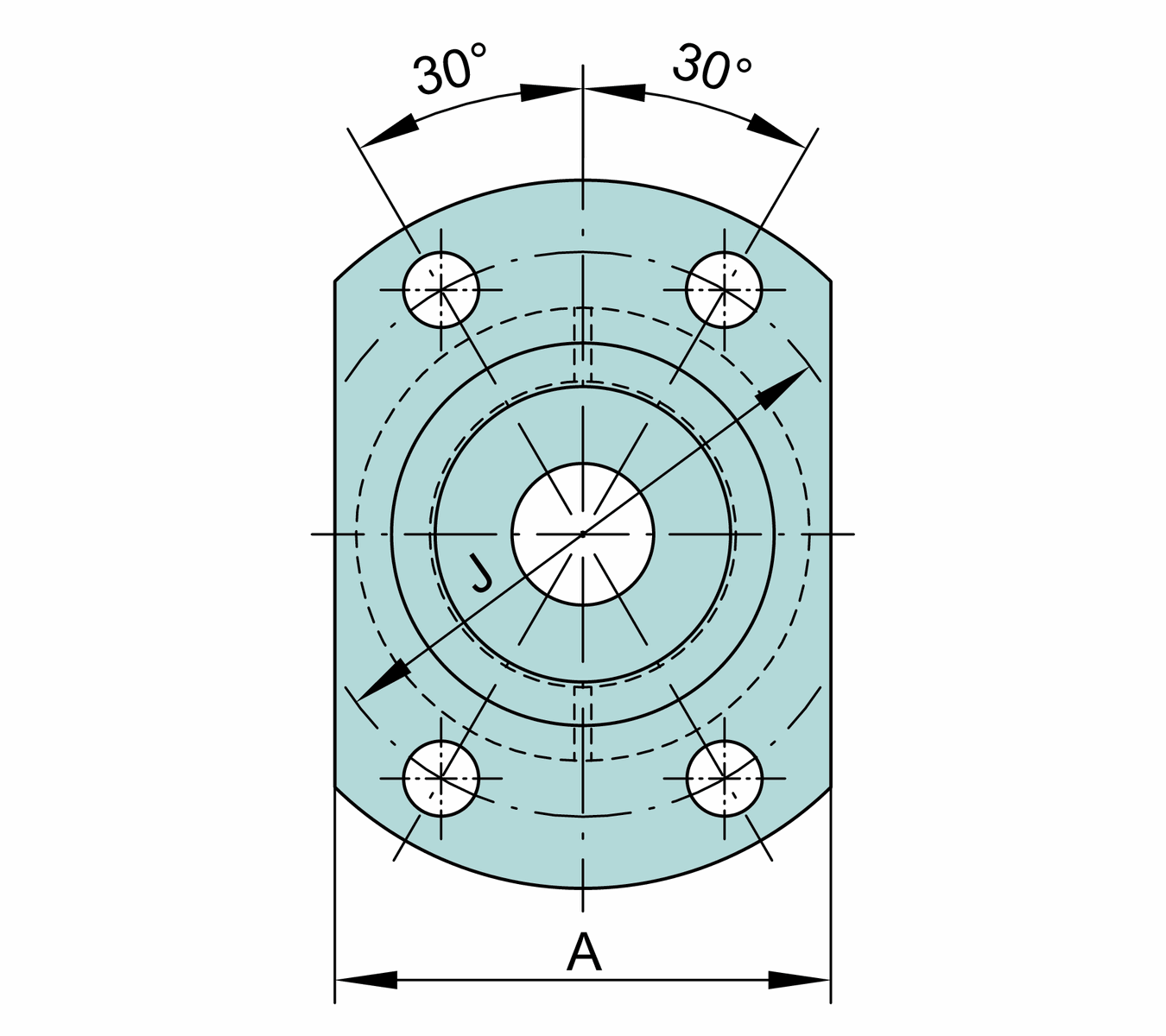

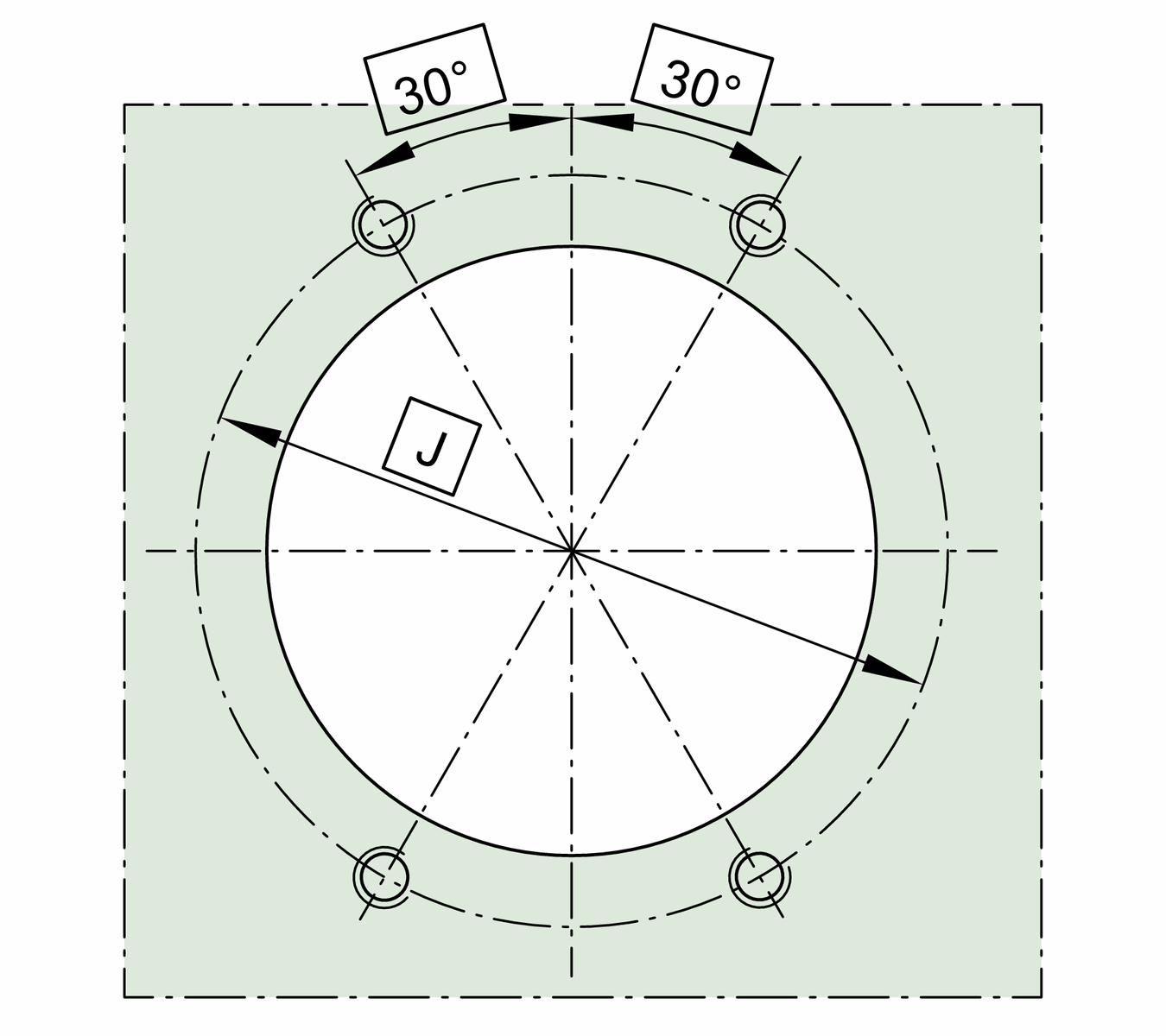

Mounting dimensions

d1

 12 mm Inner ring rib diameter

r min

 0.3 mm Minimum chamfer size

r1 min

 0.3 mm Minimum chamfer size

B1

 5 mm Flange thickness

d2

 3.5 mm Fixed hole diameter

J

 24 mm Pitch diameter (hole)

A

 22 mm Flange width

da min

 9 mm Shaft shoulder minimum diameter

da max

 15 mm Shaft shoulder maximum diameter

t1

 0.1 mm position tolerance

M3 Bolt size

na

 4 Number of screws

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
