Main Dimensions & Performance Data

d

325 mm

D

450 mm

B

60 mm

Ca

172000 N

Coa

1110000 N

Cua

N

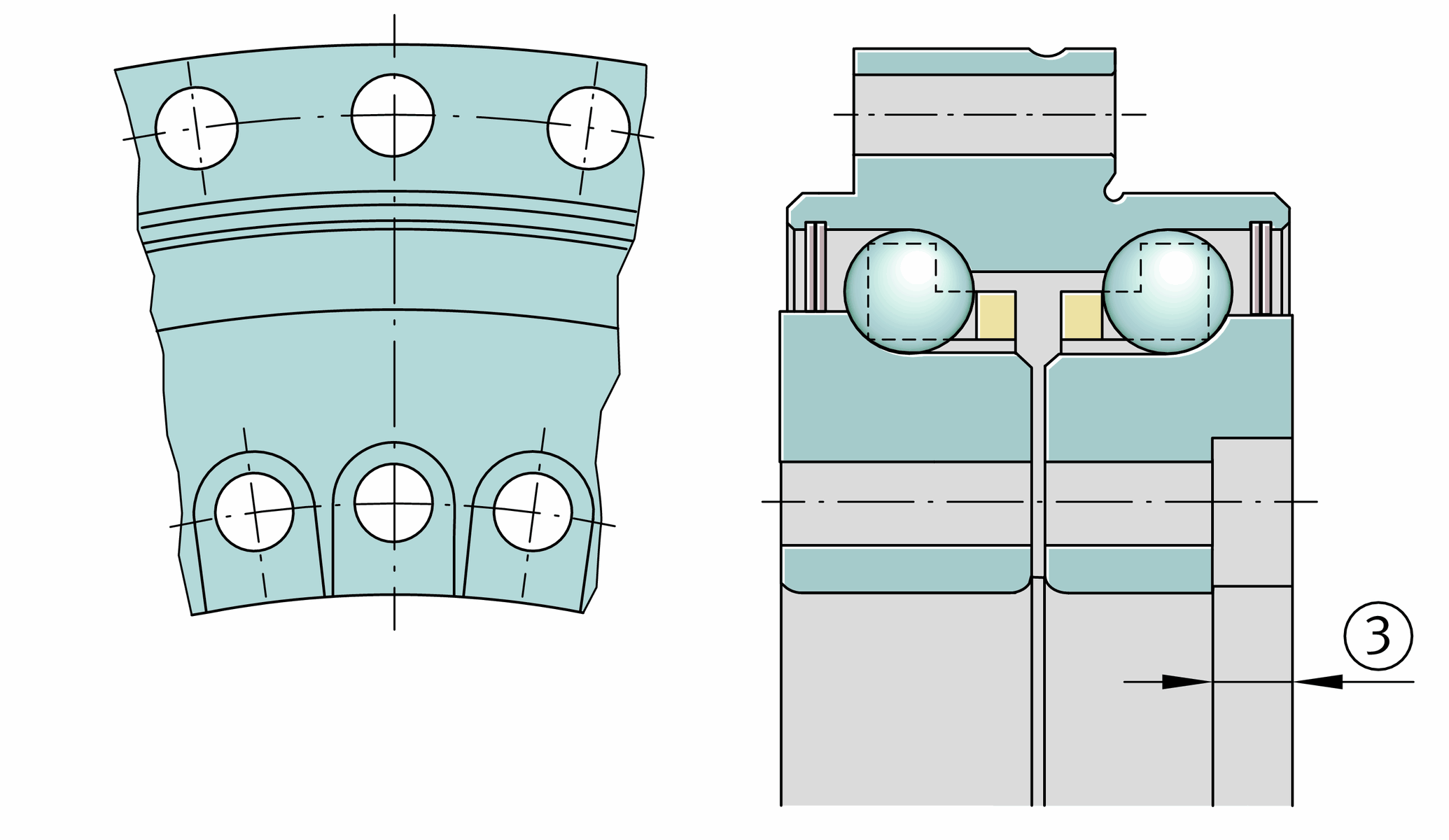

Mounting dimensions

H1

40 mm Outer ring contact surface height

J

342 mm Inner ring fixing hole diameter

0.2 mm Height contact face outerring H1 upper tolerance

J1

430 mm outer ring fixing hole diameter

d1

9.3 mm Inner ring fixed aperture

-0.2 mm Height contact face outerring H1 lower tolerance

d2

15 mm Fixed hole counterbore diameter

D1

415 mm Outer diameter D1

a

8.2 mm Fixed hole counterbore depth

D2

380 mm Inner ring rib diameter

D3

413 mm Outer diameter D3

34 Number of inner ring fixing holes

t1

6 µm Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.

d3

9.3 mm Outer ring fixed aperture

33 Number of outer ring fixing holes

n

36 pitch

t

10 ° Pitch circle separation angle

G

M12 Threaded extraction hole

3 Number of threaded extraction holes

MA

34 Nm Tightening torque

2 Number of fixing screws

Temperature range

T min

-30 °C Minimum operating temperature

T max

120 °C Maximum operating temperature
