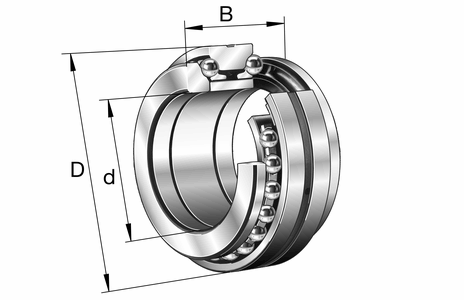

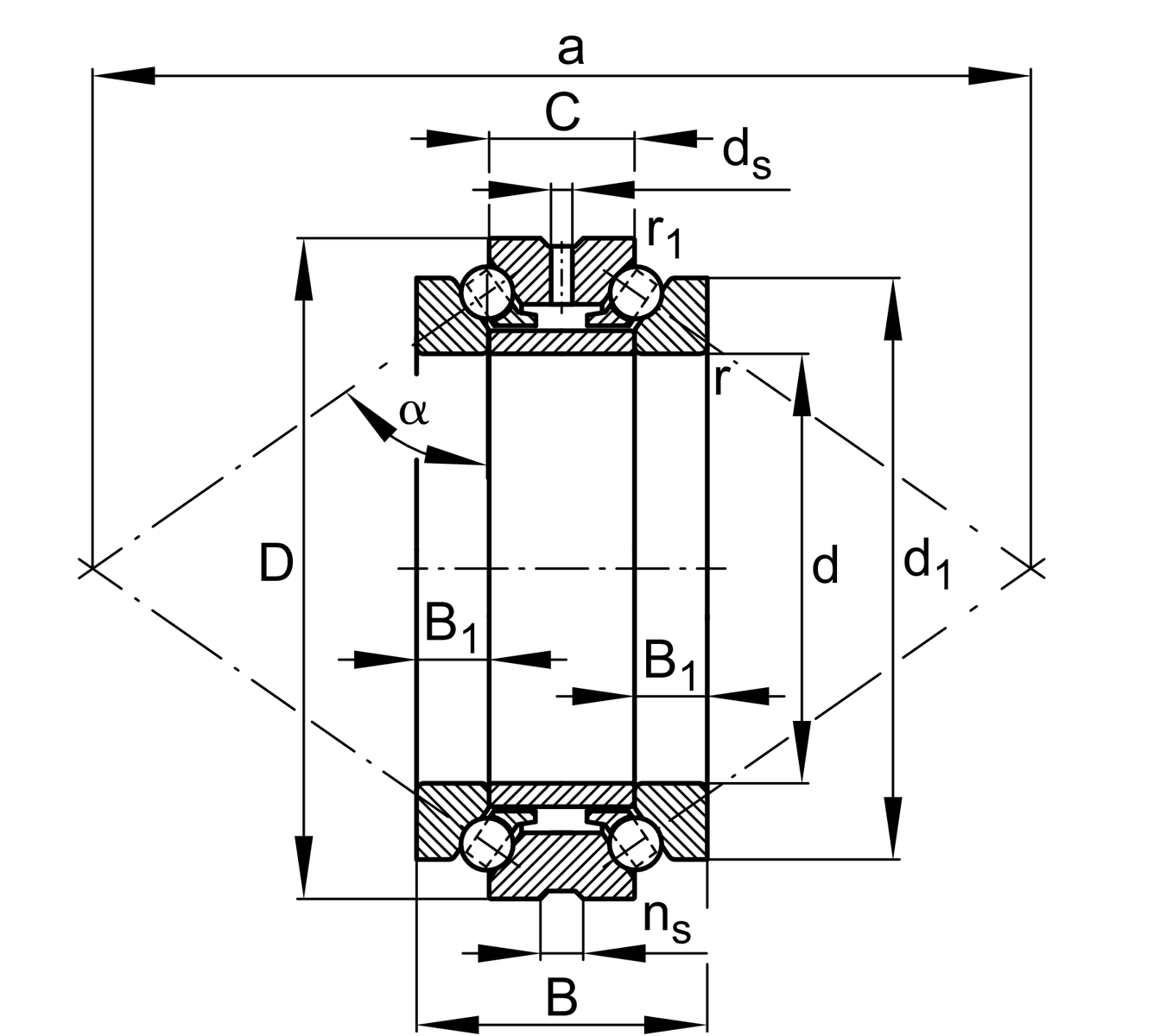

Main Dimensions & Performance Data

d

100 mm

D

150 mm

B

60 mm

Ca

68000 N

Coa

229000 N

Cua

N

Limiting speed

3800 rpm

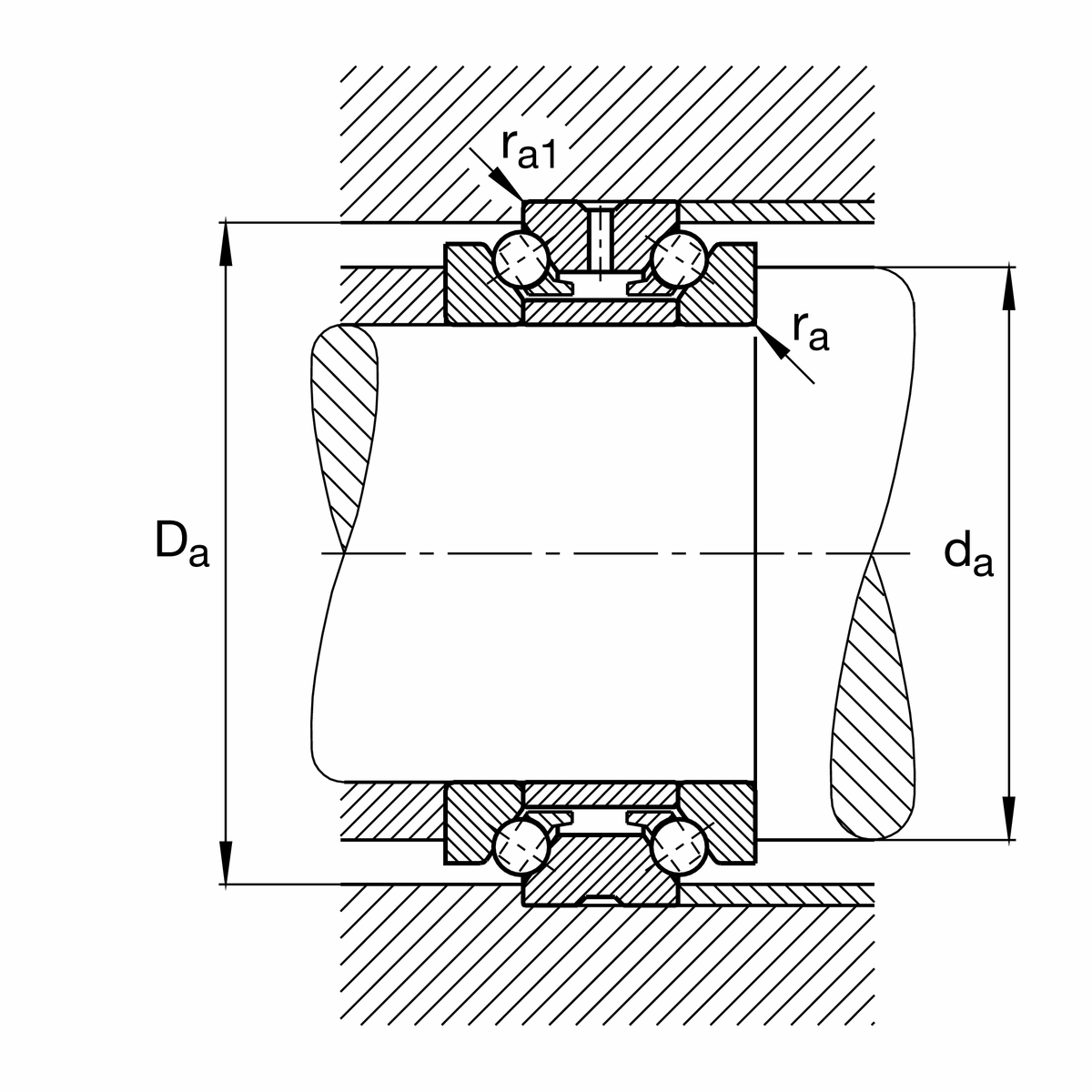

Mounting dimensions

da

120.5 mm Shaft shoulder diameter

d1

133 mm Shaft ring split diameter

da

h12 Shaft shoulder clearance diameter

B1

15 mm Corrugated disc height

r min

1.5 mm Minimum chamfer size

Da

140.5 mm Outer ring shoulder diameter

r1 min

0.3 mm Minimum chamfer size

Da

H12 Outer ring clearance shoulder diameter

ds

4.8 mm Lubrication hole diameter

ra max

1.5 mm Maximum pocket radius

ra1 max

0.3 mm Maximum pocket radius

ns

9.5 mm Lubrication groove width

α

60 ° Contact angle

a

249.5 mm Pressure cone tip distance

Temperature range

T min

-30 °C Minimum operating temperature

T max

150 °C Maximum operating temperature
