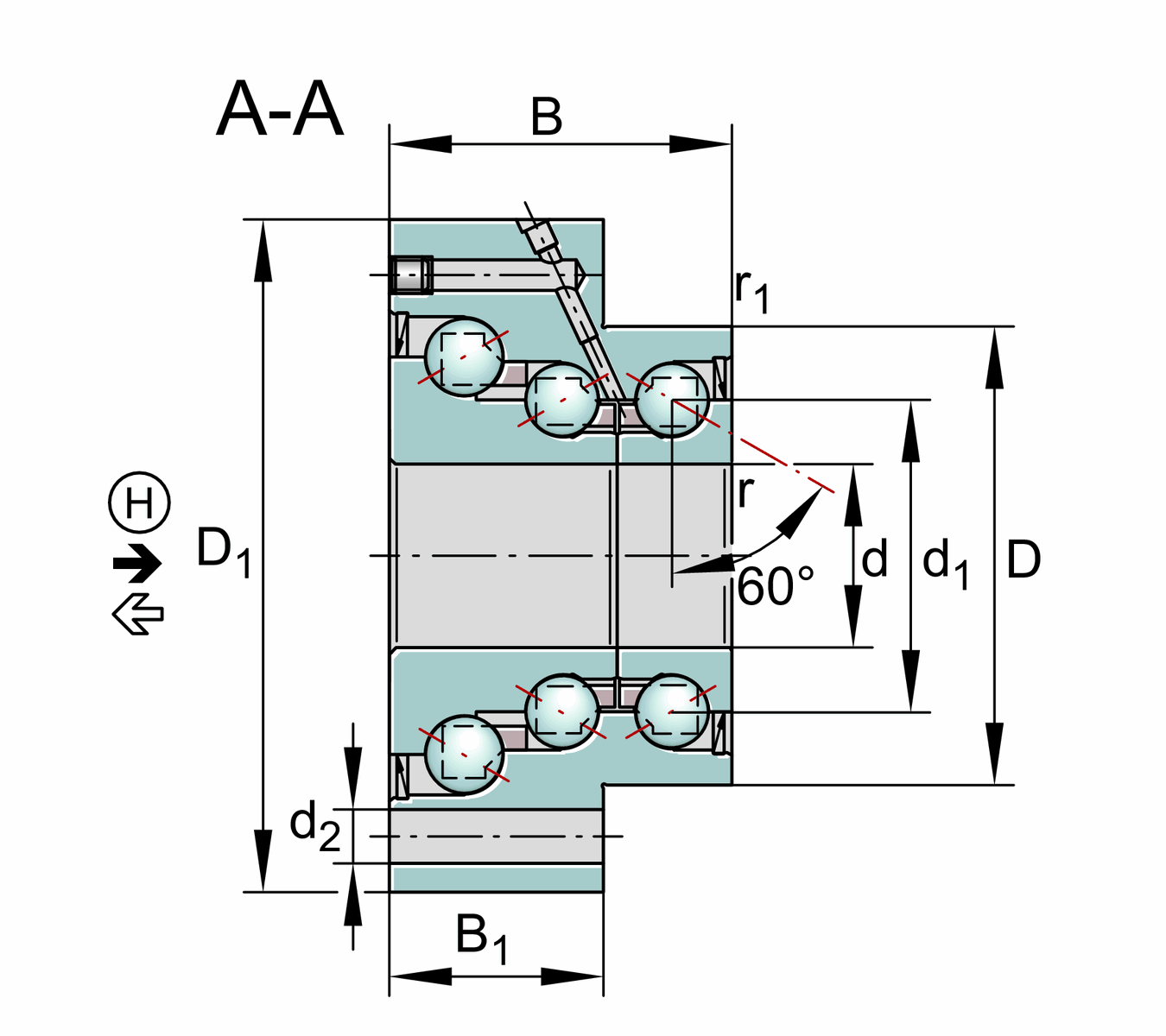

Main Dimensions & Performance Data

d

 30 mm

D

 75 mm

B

 56 mm

Ca

 59000 N

Coa

 108000 N

Cua

 N

Reference speed

 1600 rpm

Limiting speed

 3500 rpm

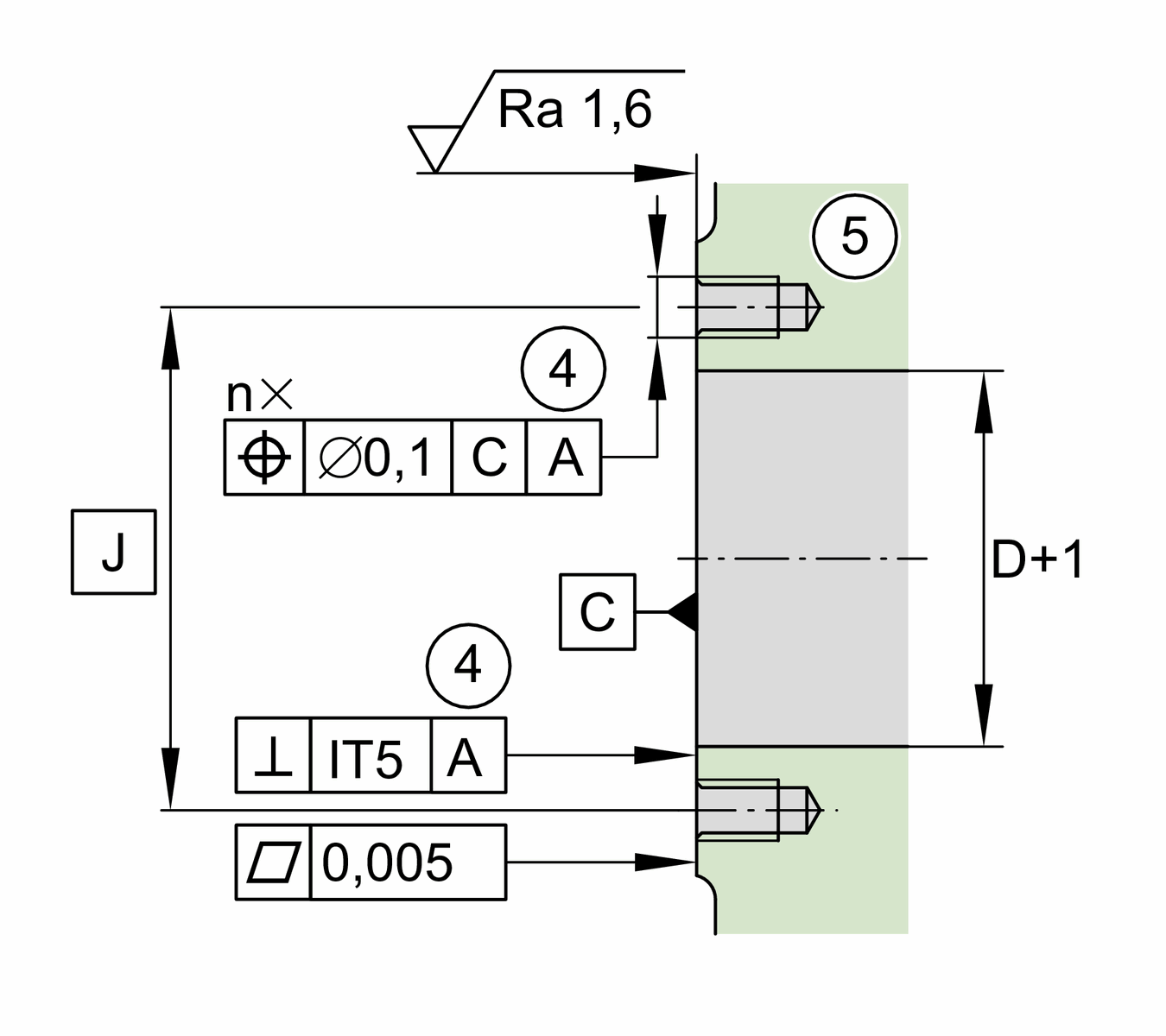

Mounting dimensions

da min

 47 mm Shaft shoulder minimum diameter

d1

 51 mm Inner ring rib diameter

D1

 110 mm Flange diameter

da max

 64 mm Shaft shoulder maximum diameter

r min

 0.3 mm Minimum chamfer size

r1 min

 0.6 mm Minimum chamfer size

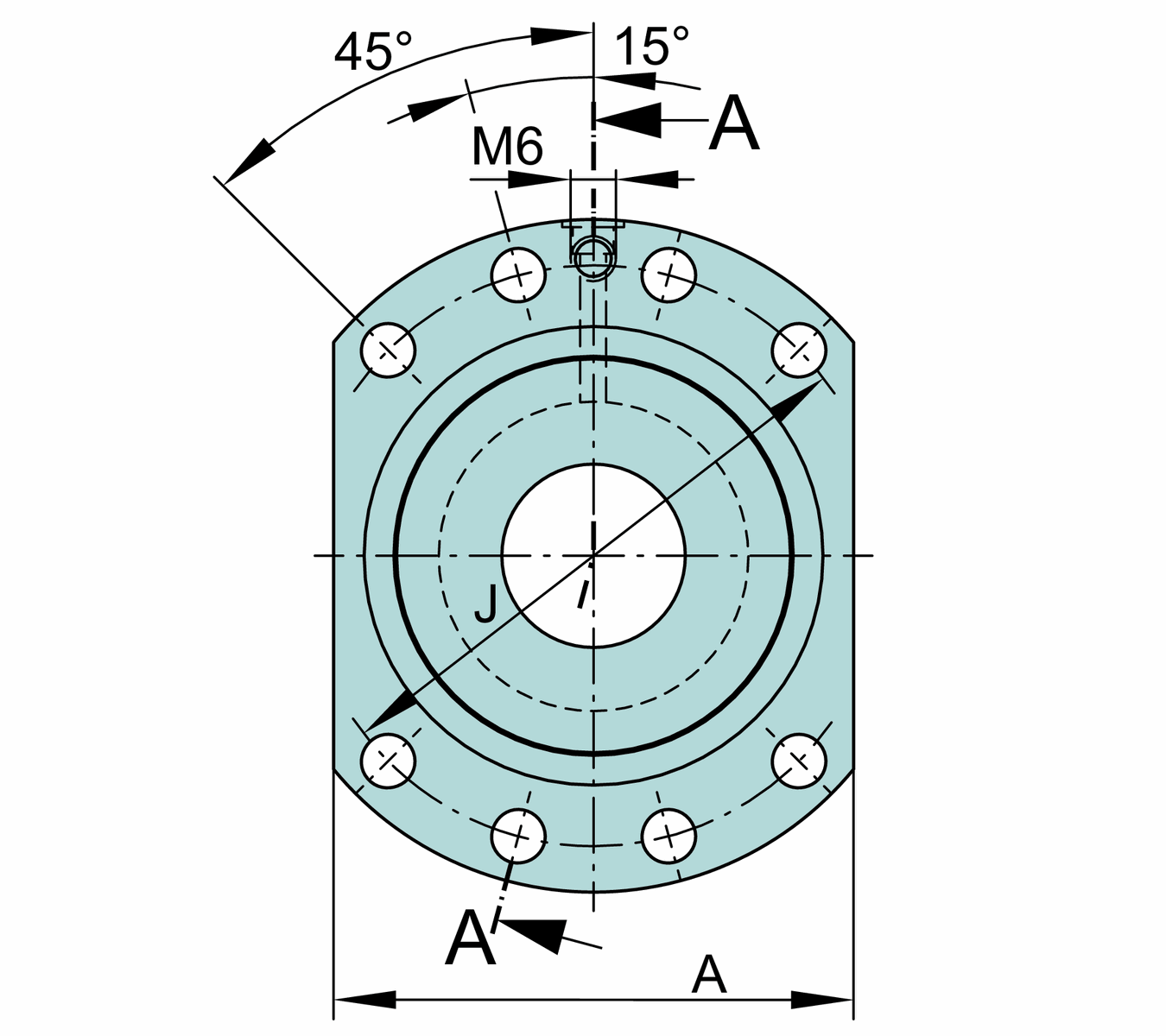

M8 Bolt size

n

 8 Number of screws

B1

 35 mm Flange thickness

d2

 8.8 mm Fixed hole diameter

J

 95 mm Pitch diameter (hole)

A

 85 mm Flange width

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
