Main Dimensions & Performance Data

d

 30 mm

D

 47 mm

B

 25 mm

Cr

 28500 N

Cor

 35500 N

Cur

 6600 N

Ca

 5900 N

Coa

 11200 N

Cua

 6600 N

Reference speed

 10000 rpm

Limiting speed

 12700 rpm

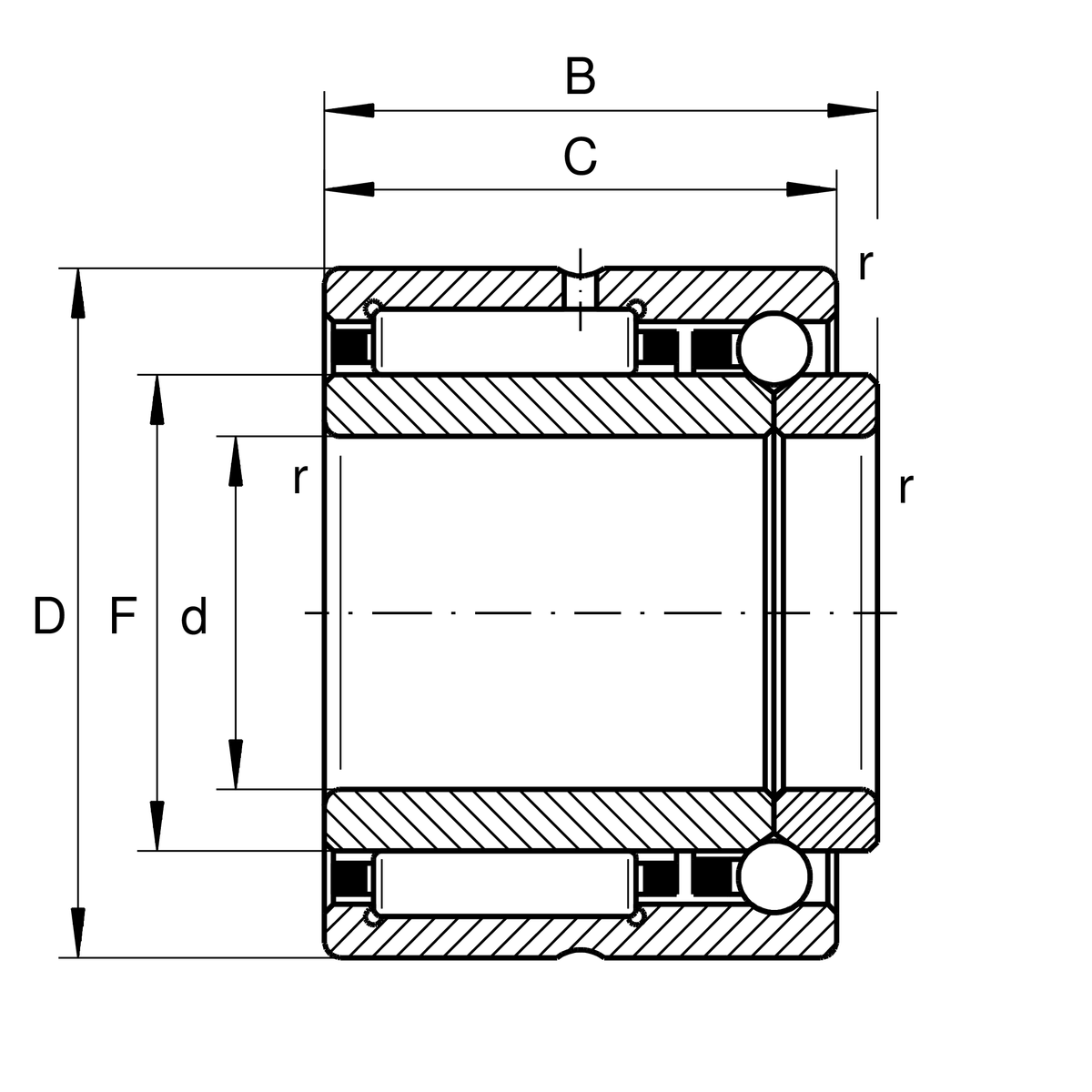

Mounting dimensions

F

 35 mm Inner ring raceway diameter

C

 23 mm Outer ring width

r min

 0.3 mm Minimum chamfer size

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
