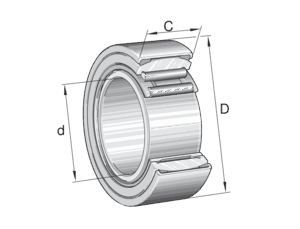

Main Dimensions & Performance Data

d

17 mm

D

35 mm

C

16 mm

Cr

14600 N

Cor

17500 N

Cur

3300 N

Limiting speed

21100 rpm

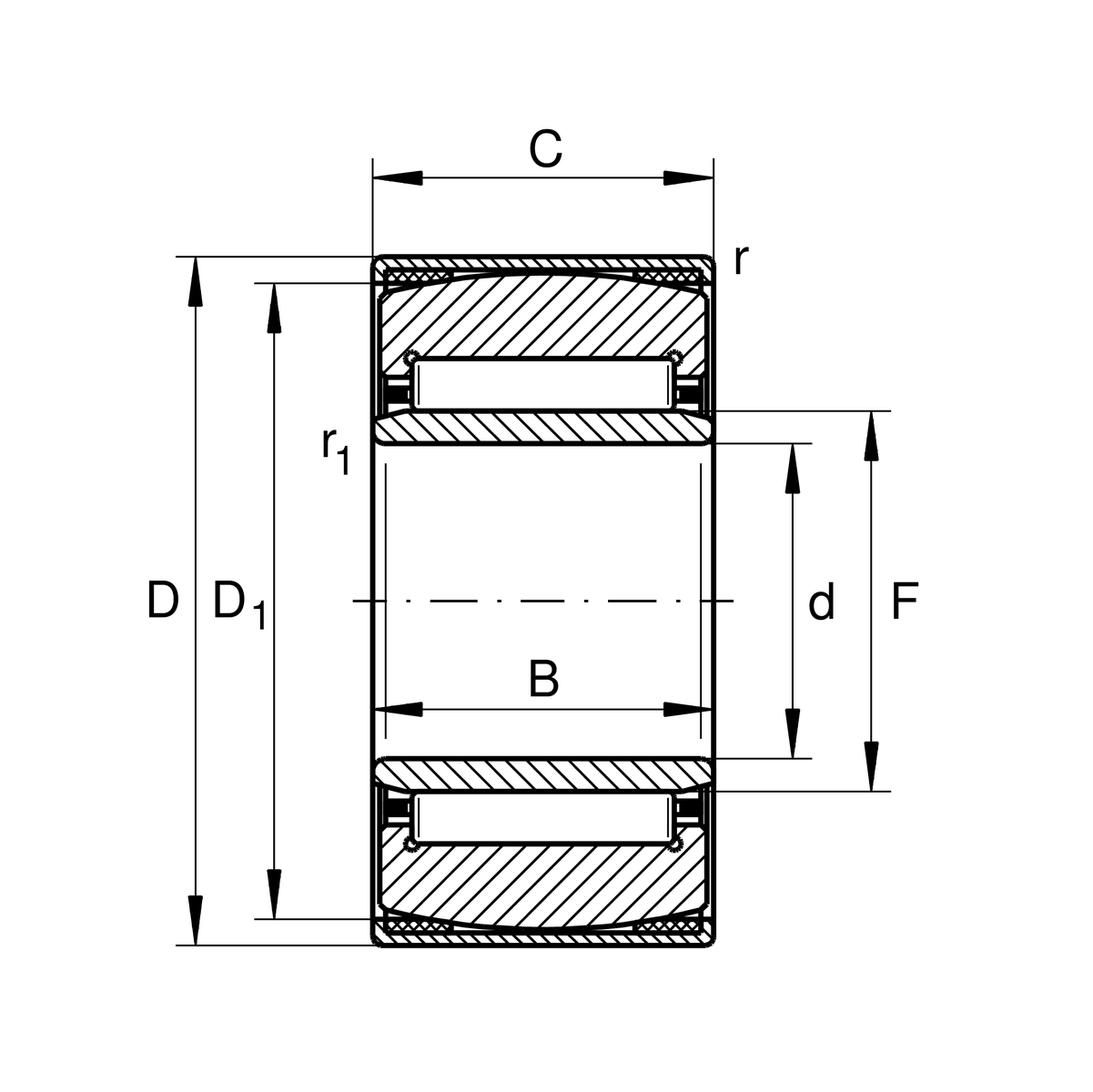

Mounting dimensions

F

20 mm Inner ring raceway diameter

B

16 mm Inner ring width

D1

30.5 mm Outer cap flange diameter

r min

0.8 mm Minimum chamfer size

r1 min

0.3 mm Minimum chamfer size

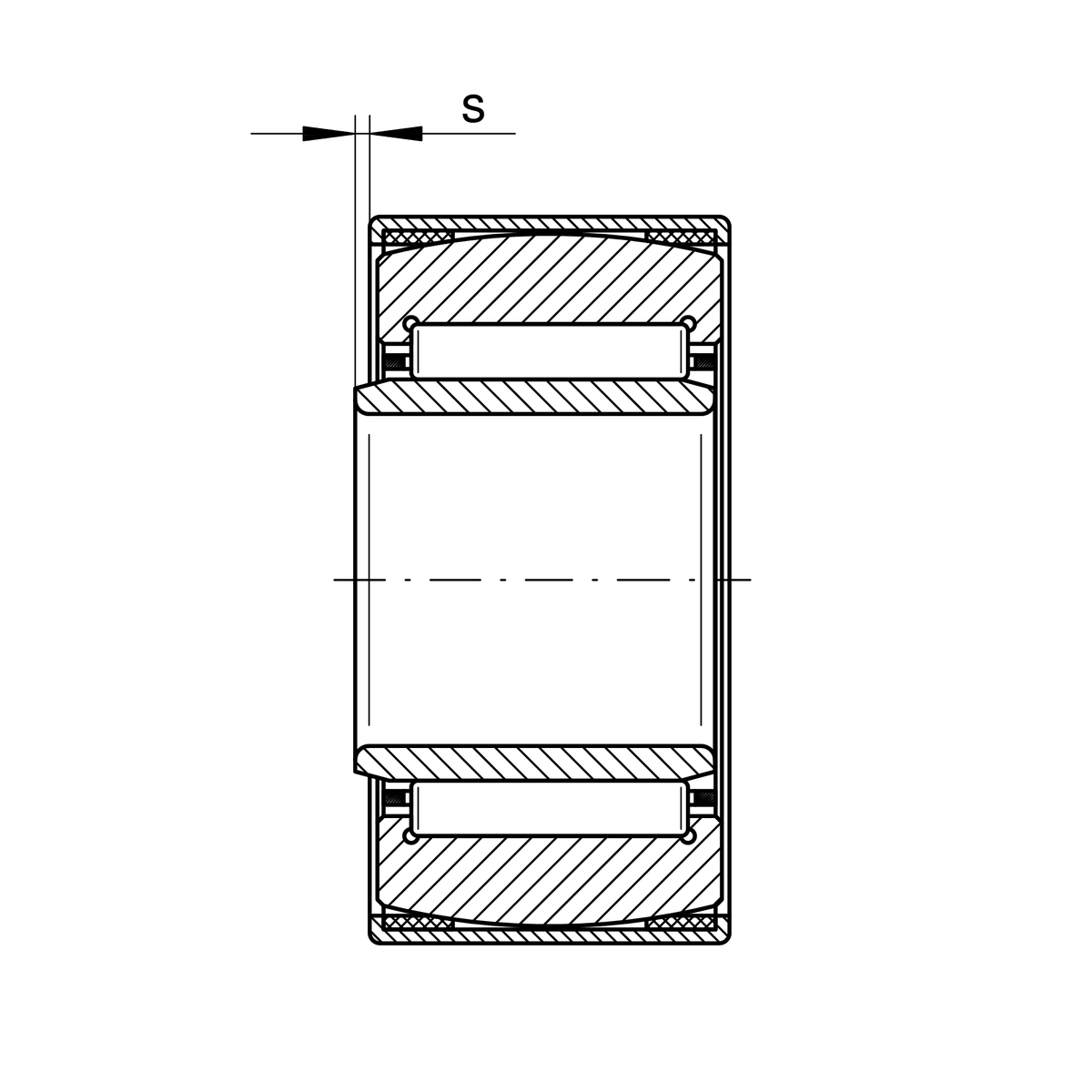

s min

0.5 mm Minimum axial displacement

Temperature range

T min

-20 °C Minimum operating temperature

T max

100 °C Maximum operating temperature
