Main Dimensions & Performance Data

Fw

15 mm

D

28 mm

C

12 mm

Cr

7800 N

Cor

7900 N

Cur

1450 N

Limiting speed

24100 rpm

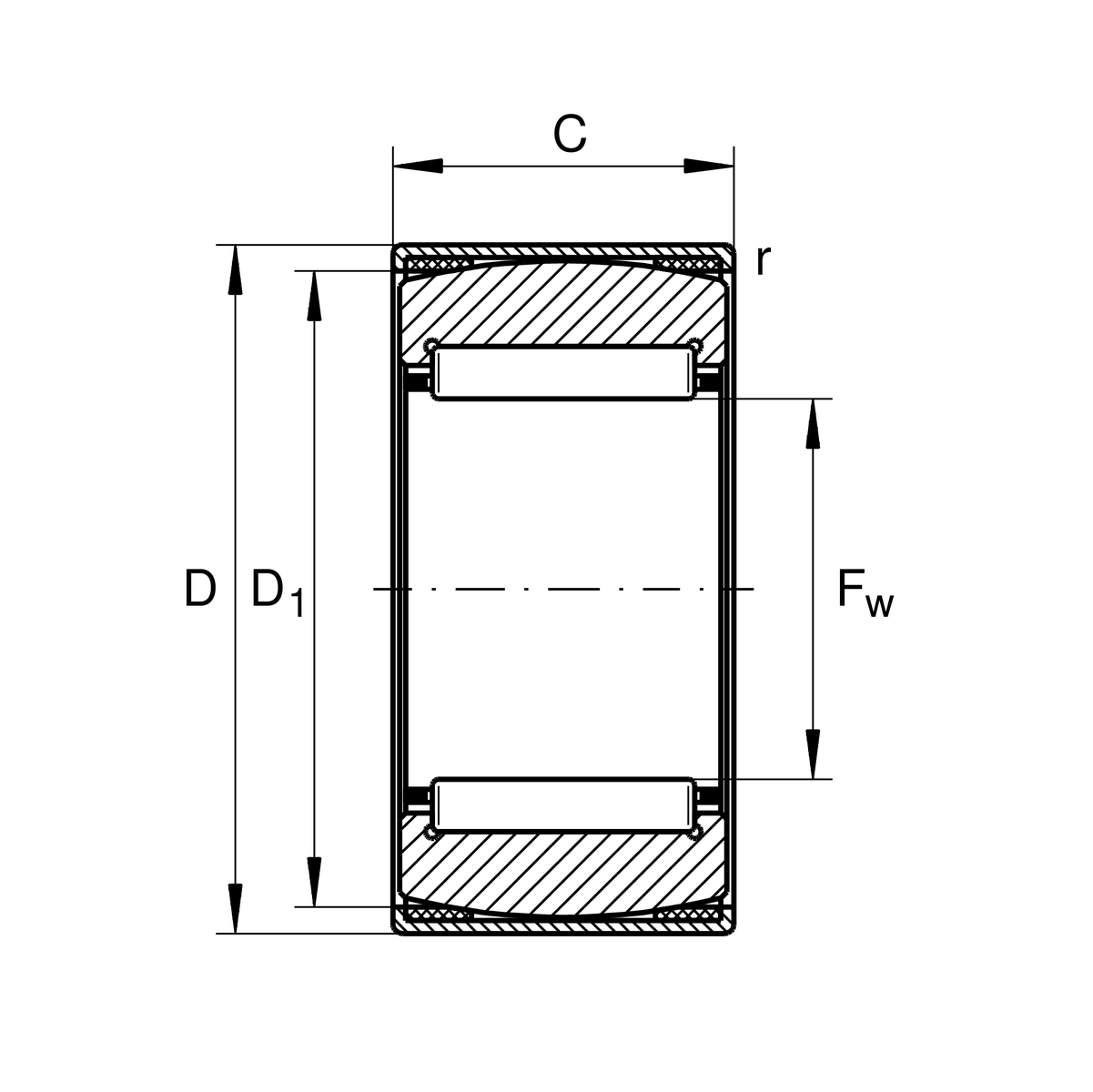

Mounting dimensions

D1

24.5 mm Outer cap flange diameter

r min

0.8 mm Minimum chamfer size

Temperature range

T min

-20 °C Minimum operating temperature

T max

100 °C Maximum operating temperature
