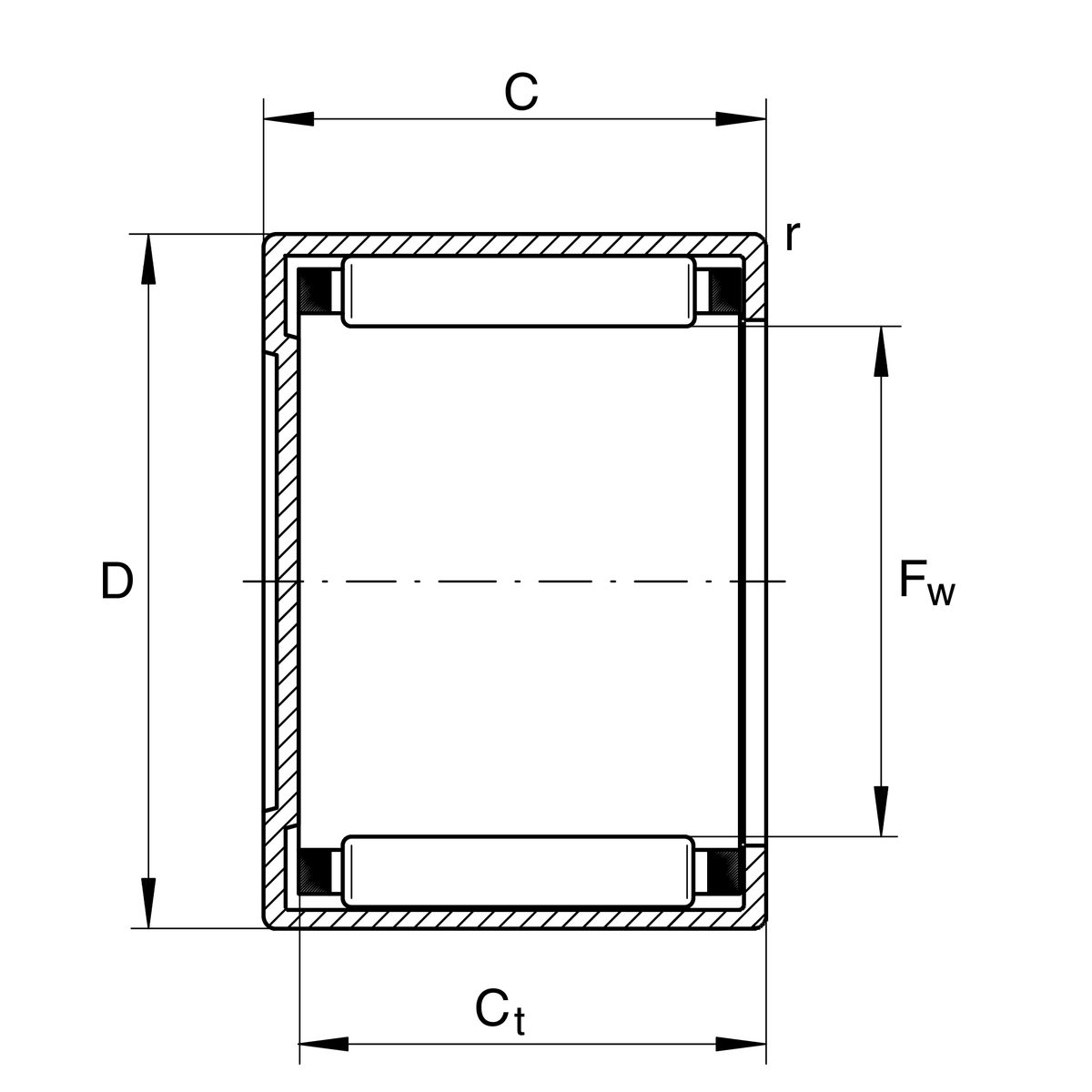

Main Dimensions & Performance Data

d

 20 mm

Fw

 14 mm

C

 12 mm

Cr

 7100 N

Cor

 8500 N

Cur

 1030 N

Reference speed

 13500 rpm

Limiting speed

 17500 rpm

Grease lubrication speed

 10500 rpm

Mounting dimensions

r min

 0.8 mm Minimum chamfer size

Ct min

 9.3 mm Closed drawn cup seat minimum width

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 140 °C Maximum operating temperature
