Insert Ball Bearing

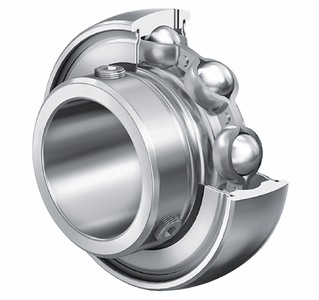

GAY15-XL-PP-B-FA164 Insert Ball Bearing
Request Information
Return to list
VIEW CAD DRAWING
View structure diagram
DOWNLOADS
Domax
®
Precision rolling bearings
Main Dimensions & Performance Data
d
15 mm
D
40 mm
B
22 mm
Cr
10100 N
Cor
4750 N
Cur
202 N
Mounting dimensions
C
15 mm
Outer ring width
S
7.5 mm
Raceway distance
d1
33.6 mm
Inner ring flange diameter
d2
30.4 mm
SealInner ring flange diameter
Ca
3.9 mm
Distance to lubrication hole
A
5 mm
Thread distance
W
0.09375
Opening width (inches)
Calculation coefficient
f0
13.8
Calculation coefficient
