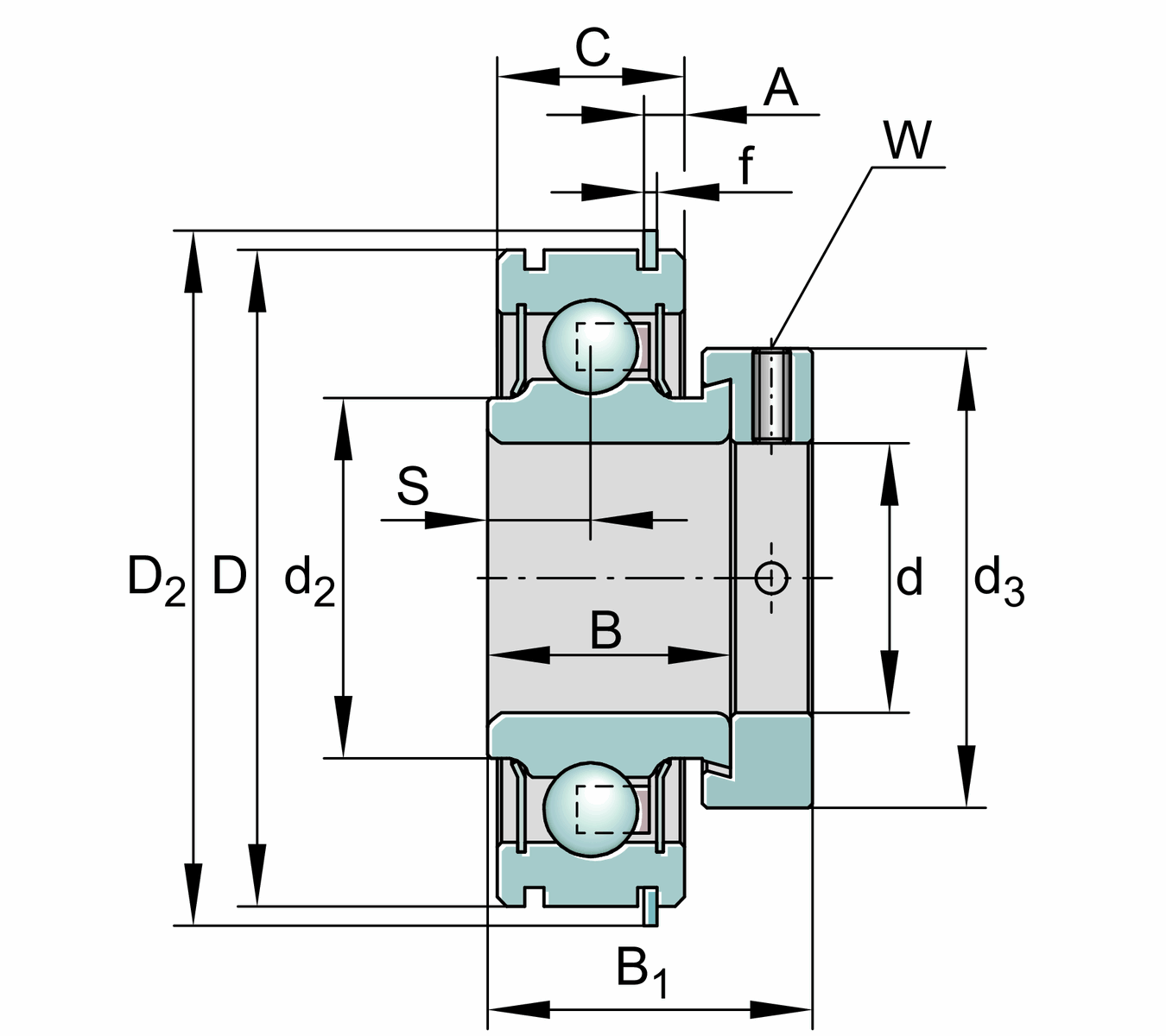

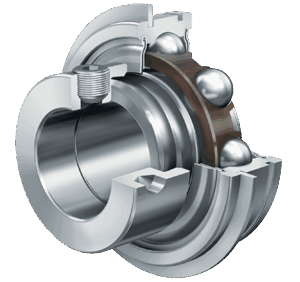

Main Dimensions & Performance Data

d

 30 mm

D

 62 mm

B

 23.8 mm

B1

 35.8 mm

Cr

 19500 N

Cor

 11300 N

Cur

 480 N

Mounting dimensions

C

 19 mm Outer ring width

C2

 29.2 mm Total sealing width

S

 18.8 mm Raceway distance

d1

 46.8 mm Inner ring flange diameter

Ca

 5.6 mm Distance to lubrication hole

d3

 55 mm Outer diameter of eccentric sleeve / locknut

W

 5 Plane width

Calculation coefficient

f0

 13.8 Calculation coefficient
