Main Dimensions & Performance Data

d

 30 mm

D

 62 mm

B

 36.5 mm

B1

 48.5 mm

Cr

 20700 N

Cor

 11300 N

Cur

 480 N

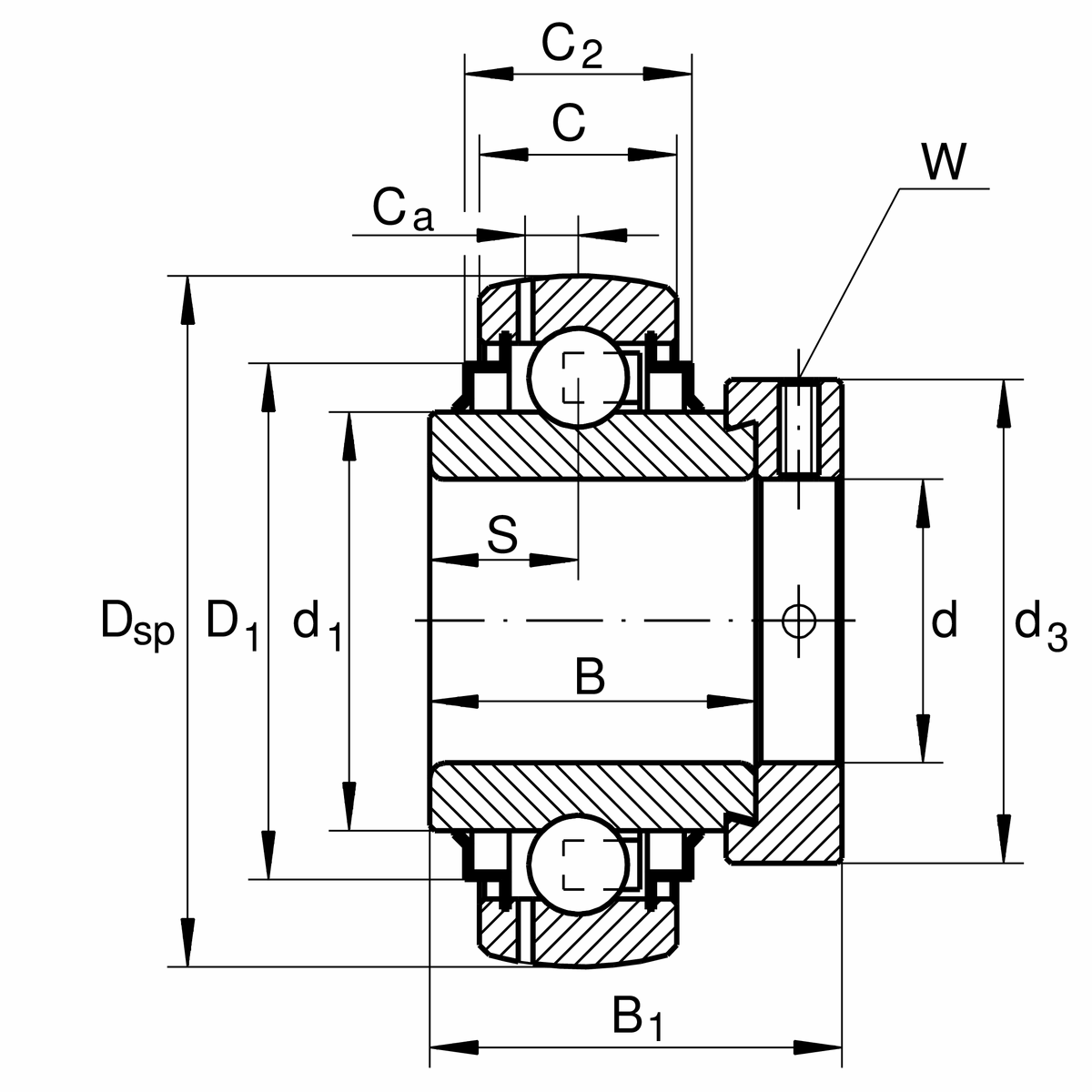

Mounting dimensions

C

 13 mm Outer ring width

S

 6.5 mm Raceway distance

d2

 35.7 mm SealInner ring flange diameter

d3

 42.5 mm Outer diameter of eccentric sleeve / locknut

W

 2.5 Plane width

Calculation coefficient

f0

 14.8 Calculation coefficient
