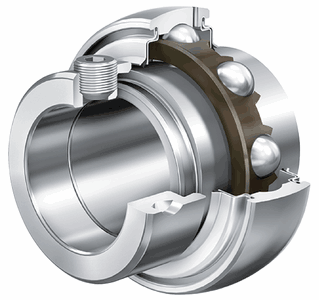

Main Dimensions & Performance Data

d

 30 mm

D

 62 mm

B

 36.5 mm

B1

 48.5 mm

Cr

 19500 N

Cor

 11300 N

Cur

 590 N

Mounting dimensions

C

 18 mm Outer ring width

S

 9 mm Raceway distance

Ca

 4.7 mm Distance to lubrication hole

b

 5 mm Width of positioning groove

t

 5 mm 紧定套Height of positioning groove

d3

 45 mm Outer diameter of eccentric sleeve / locknut

Calculation coefficient

f0

 14 Calculation coefficient
