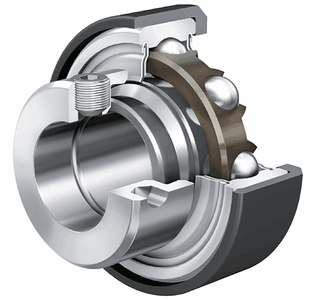

Main Dimensions & Performance Data

d

 20 mm

D

 46 mm

B1

 24.5 mm

Cr

 9400 N

Cor

 5000 N

Cur

 231 N

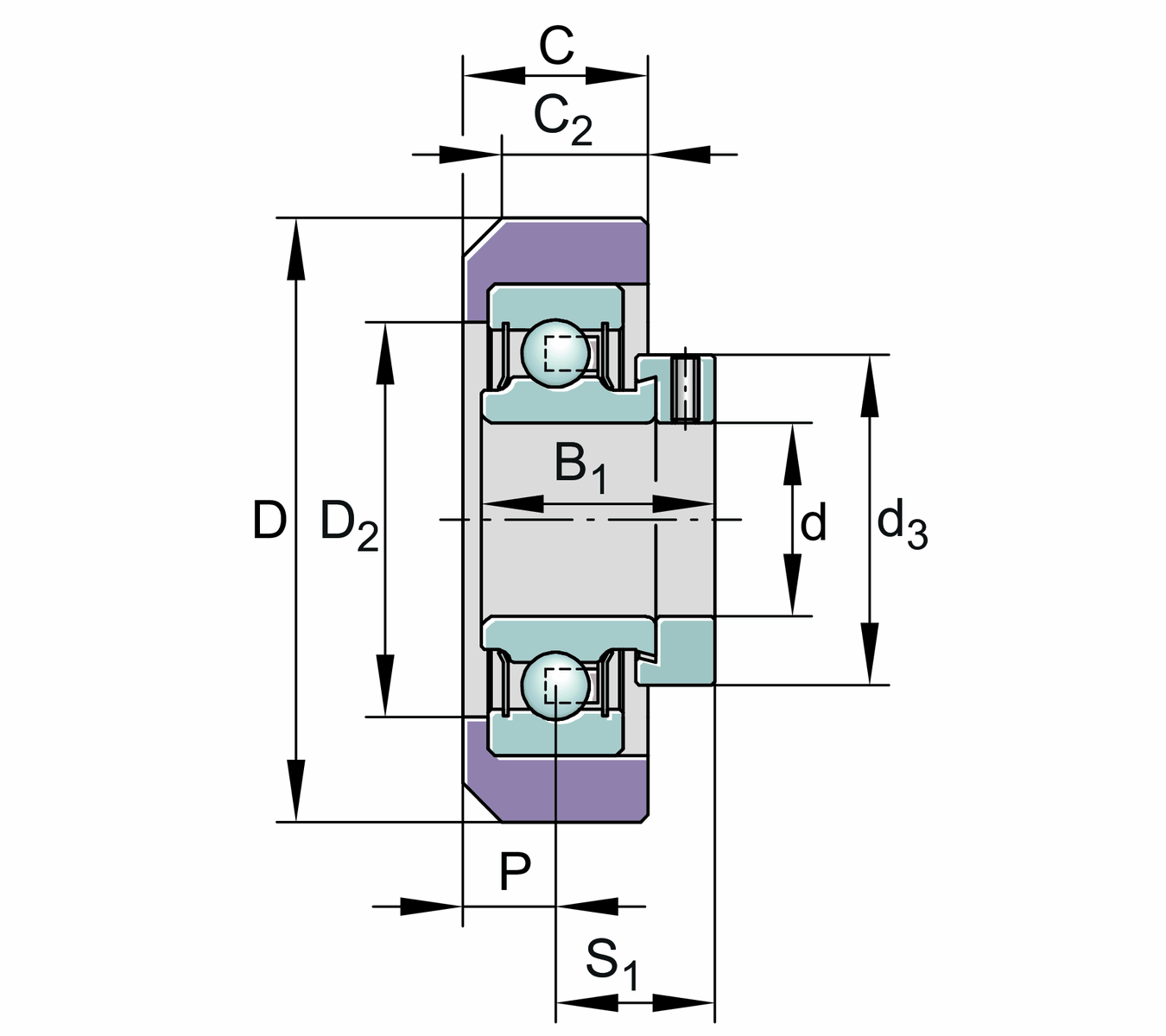

Mounting dimensions

C

 12 mm Outer ring width

S

 6 mm Raceway distance

d2

 25.4 mm SealInner ring flange diameter

d3

 30 mm Outer diameter of eccentric sleeve / locknut

W

 2.5 mm Plane width

Calculation coefficient

f0

 13.8 Calculation coefficient
