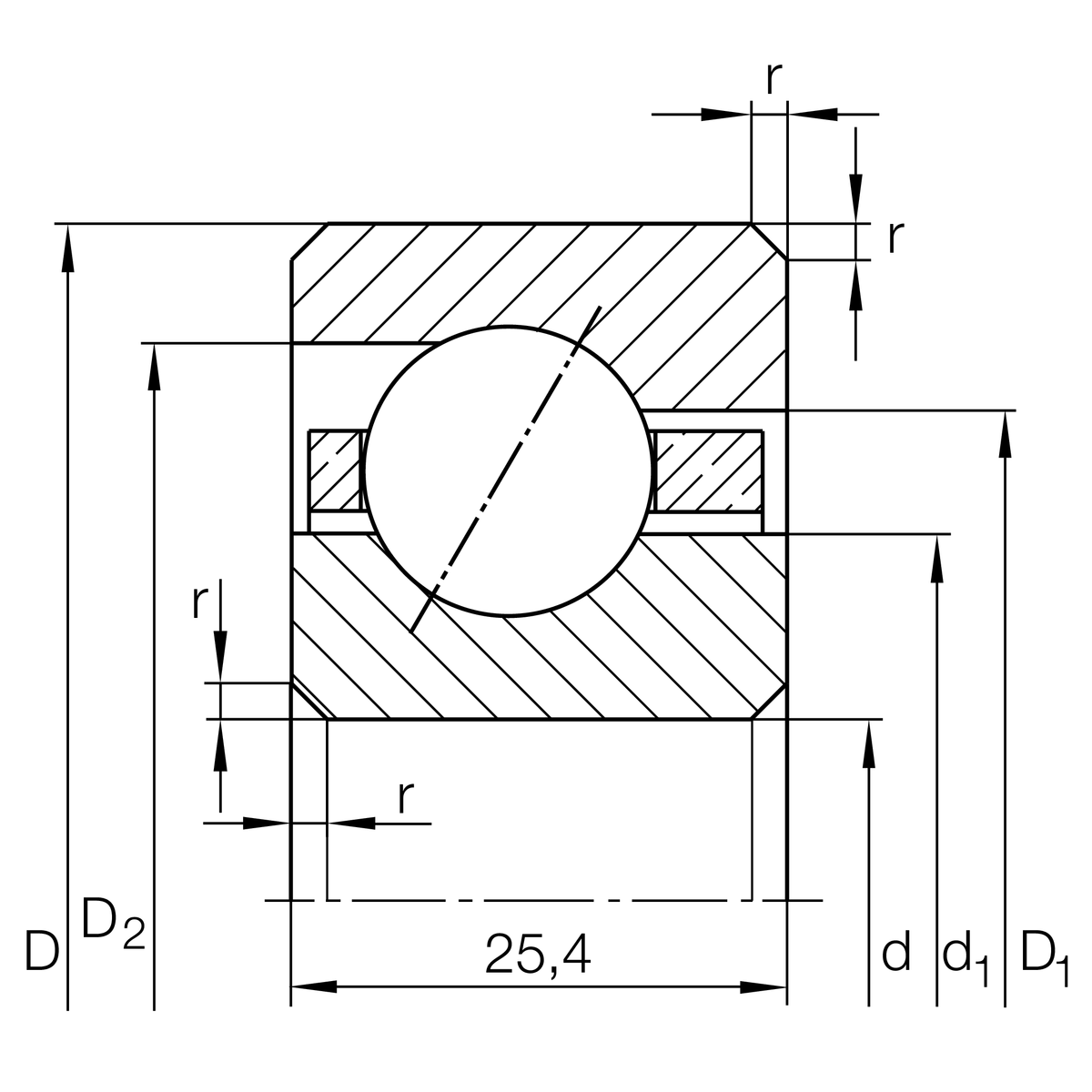

Main Dimensions & Performance Data

d

 304.8 mm

D

 355.6 mm

B

 25.4 mm

Mounting dimensions

r min

 2 mm Minimum chamfer dimension

d1

 323.7 mm Inner ring shoulder diameter

D1

 336.8 mm Outer ring shoulder diameter

D2

 342.4 mm Outer ring narrow plate diameter

α

 30 ° Contact angle

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
