Deep groove ball bearing
CSEF080 Thin Wall Bearing
Request Information
Return to list

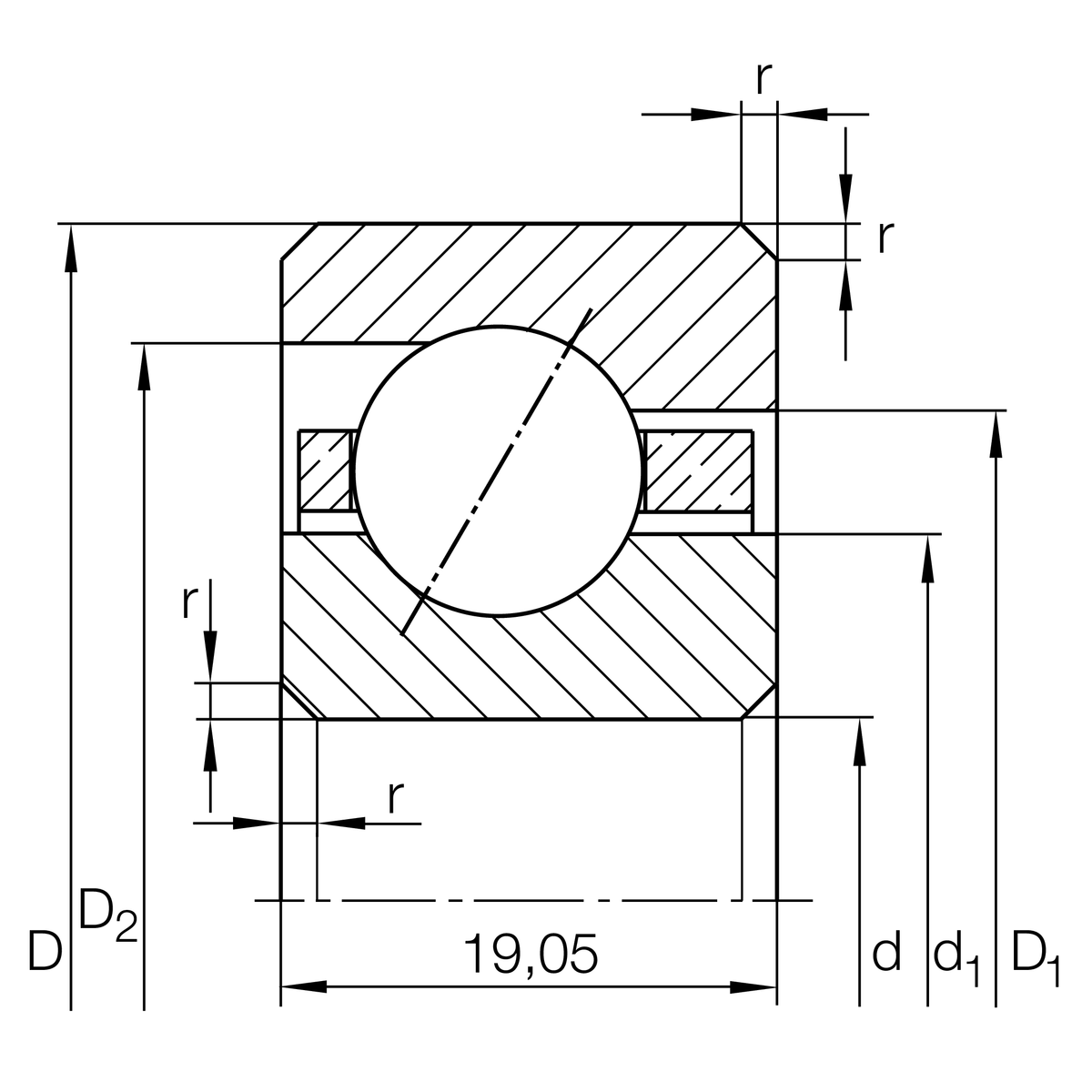

VIEW CAD DRAWING
View structure diagram
View structure diagram
DOWNLOADS
Domax
®
Precision rolling bearings
Main Dimensions & Performance Data
d
203.2 mm
D
241.3 mm
B
19.05 mm
Mounting dimensions
r min
2 mm
Minimum chamfer dimension
d1
217.3 mm
Inner ring shoulder diameter
D1
227.2 mm
Outer ring shoulder diameter
D2
231.4 mm
Outer ring narrow plate diameter
α
30 °
Contact angle
Temperature range
T min
-30 °C
Minimum operating temperature
T max
120 °C
Maximum operating temperature
