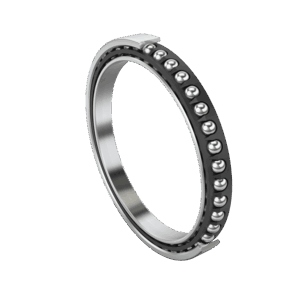

Main Dimensions & Performance Data

d

75 mm

D

95 mm

B

10 mm

Reference speed

4150 rpm

Mounting dimensions

da min

78.2 mm Shaft shoulder minimum diameter

r min

0.6 mm Minimum chamfer size

Da max

91.8 mm Maximum diameter of housing shoulder

r1 min

0.3 mm Minimum chamfer size

D1

87 mm Inner ring rib diameter

Db max

93 mm Maximum diameter of outer ring

ra max

0.6 mm Maximum pocket radius

ra1 max

0.3 mm Maximum pocket radius

d1

83 mm Inner ring rib diameter

a

40.7 mm Pressure cone tip distance

α

40 ° Contact angle

Temperature range

T min

-30 °C Minimum operating temperature

T max

120 °C Maximum operating temperature
