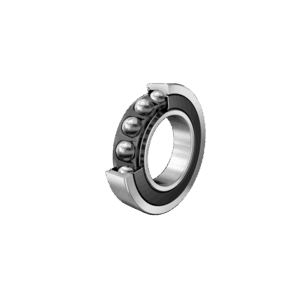

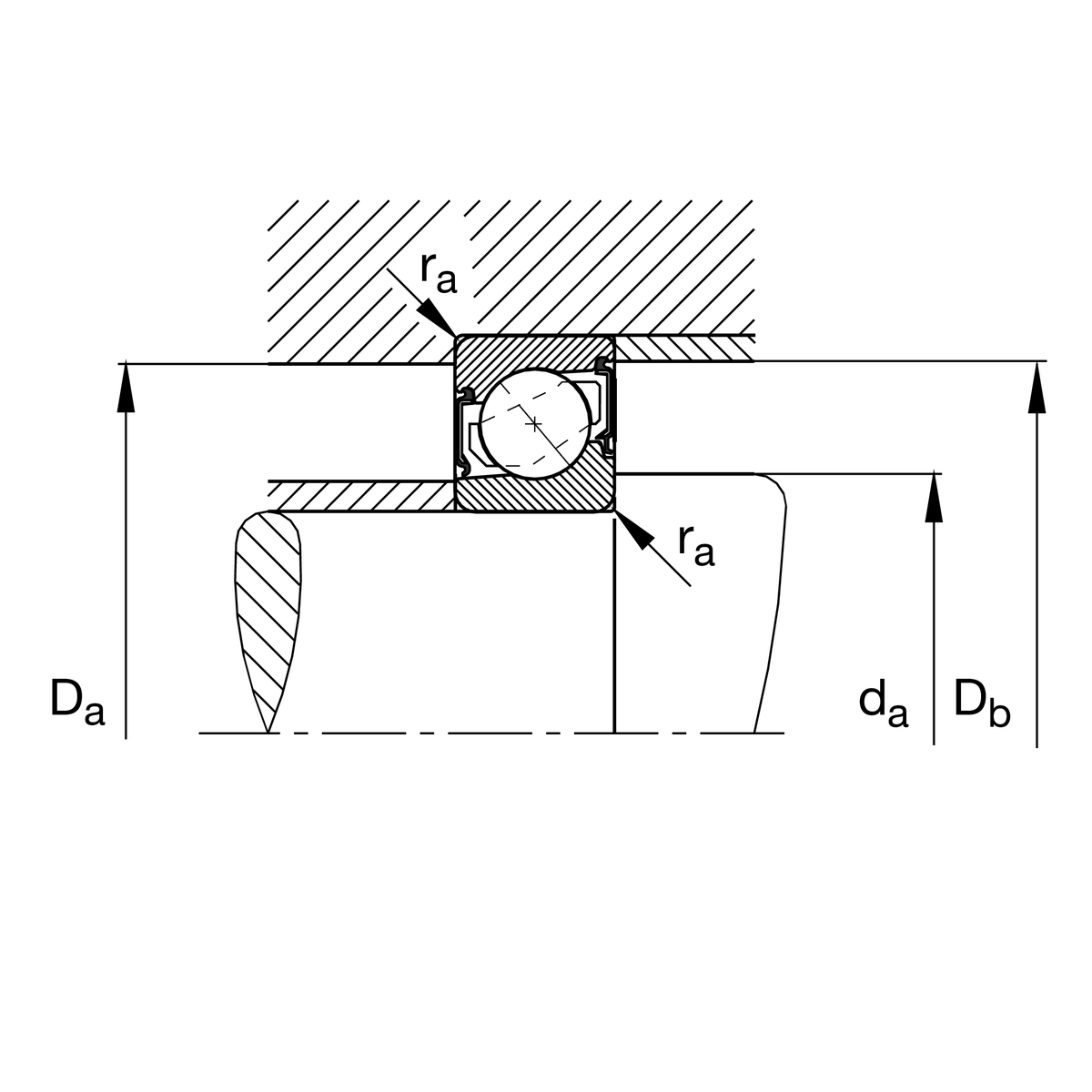

da min
|
44 mm
|
Shaft shoulder minimum diameter
|
r min
|
1.5 mm
|
Minimum chamfer size
|
Da max
|
71 mm
|
Maximum diameter of housing shoulder
|
r1 min
|
1 mm
|
Minimum chamfer size
|

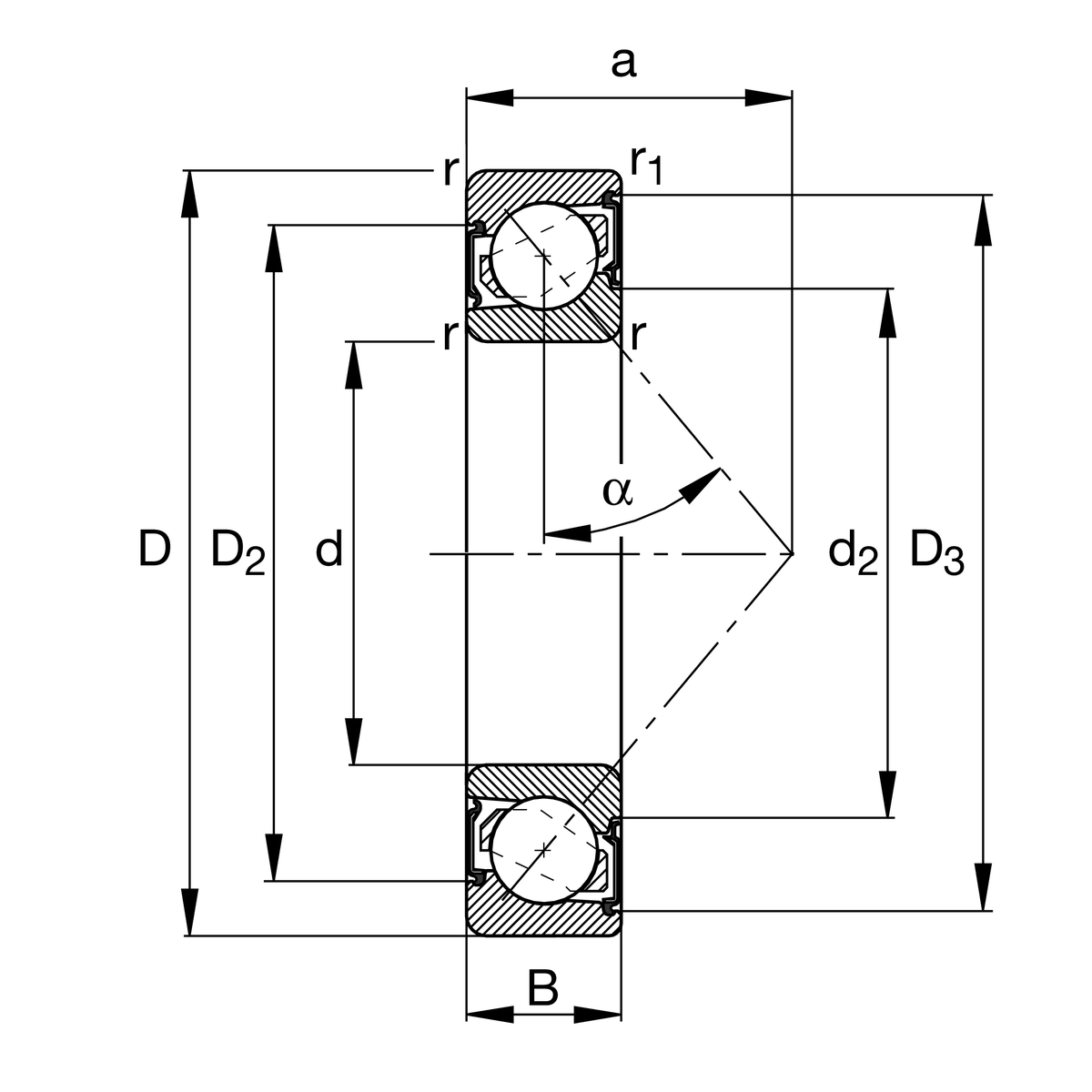

D1
|
63 mm
|
Inner ring rib diameter
|
Db max
|
74.4 mm
|
Maximum diameter of outer ring
|
ra max
|
1.5 mm
|
Maximum pocket radius
|
D2
|
65.6 mm
|
Pocket to Outer Ring Inner Diameter
|
ra1 max
|
1 mm
|
Maximum pocket radius
|
D3
|
73.9 mm
|
The inner diameter of the pocket to the small side of the outer ring
|
d1
|
53.1 mm
|
Inner ring rib diameter
|
d2
|
48.7 mm
|
Thrust washer diameter
|
a
|
35 mm
|
Pressure cone tip distance
|
α
|
40 °
|
Contact angle
|
