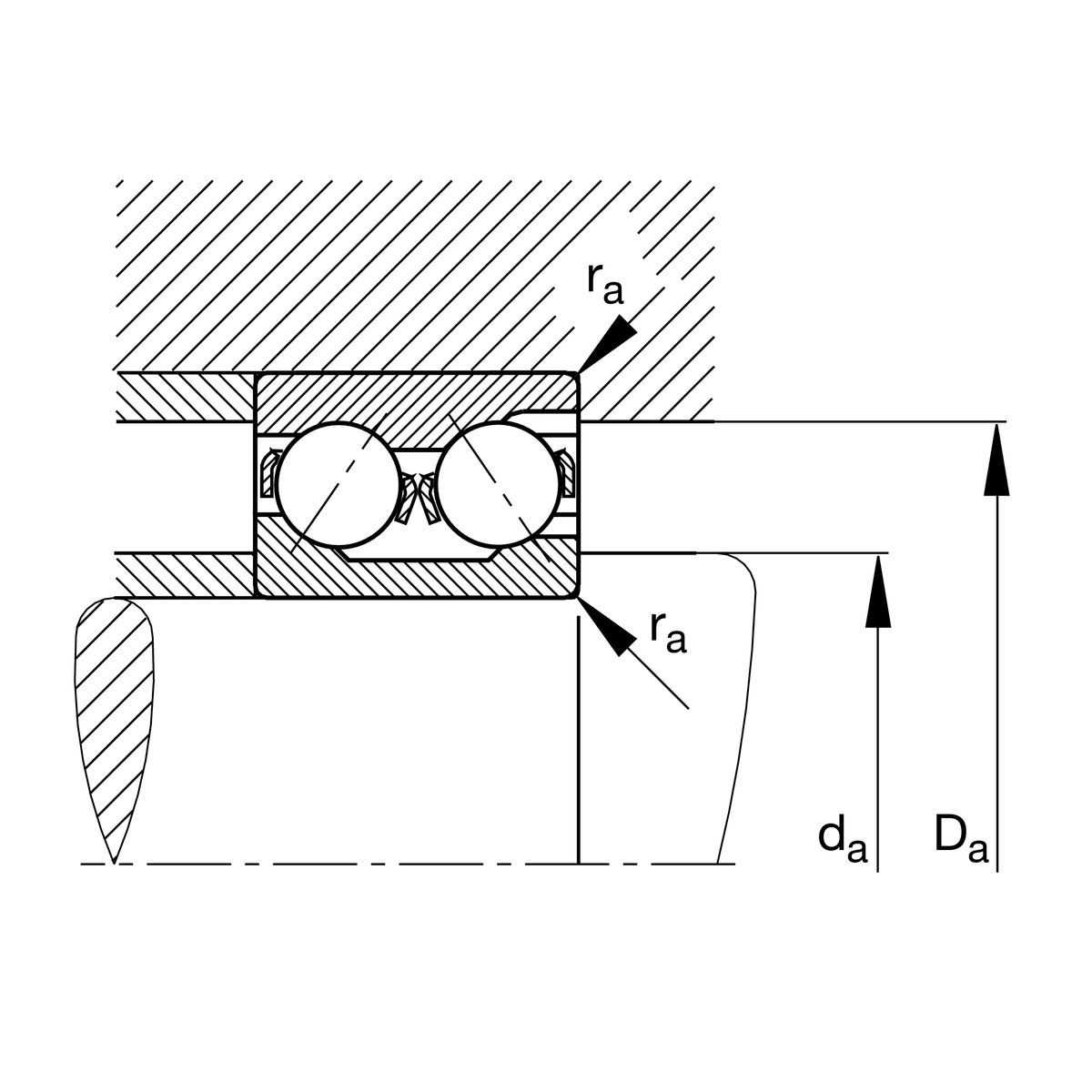

da min
|
112 mm
|
Shaft shoulder minimum diameter
|
r min
|
2.1 mm
|
Minimum chamfer size
|

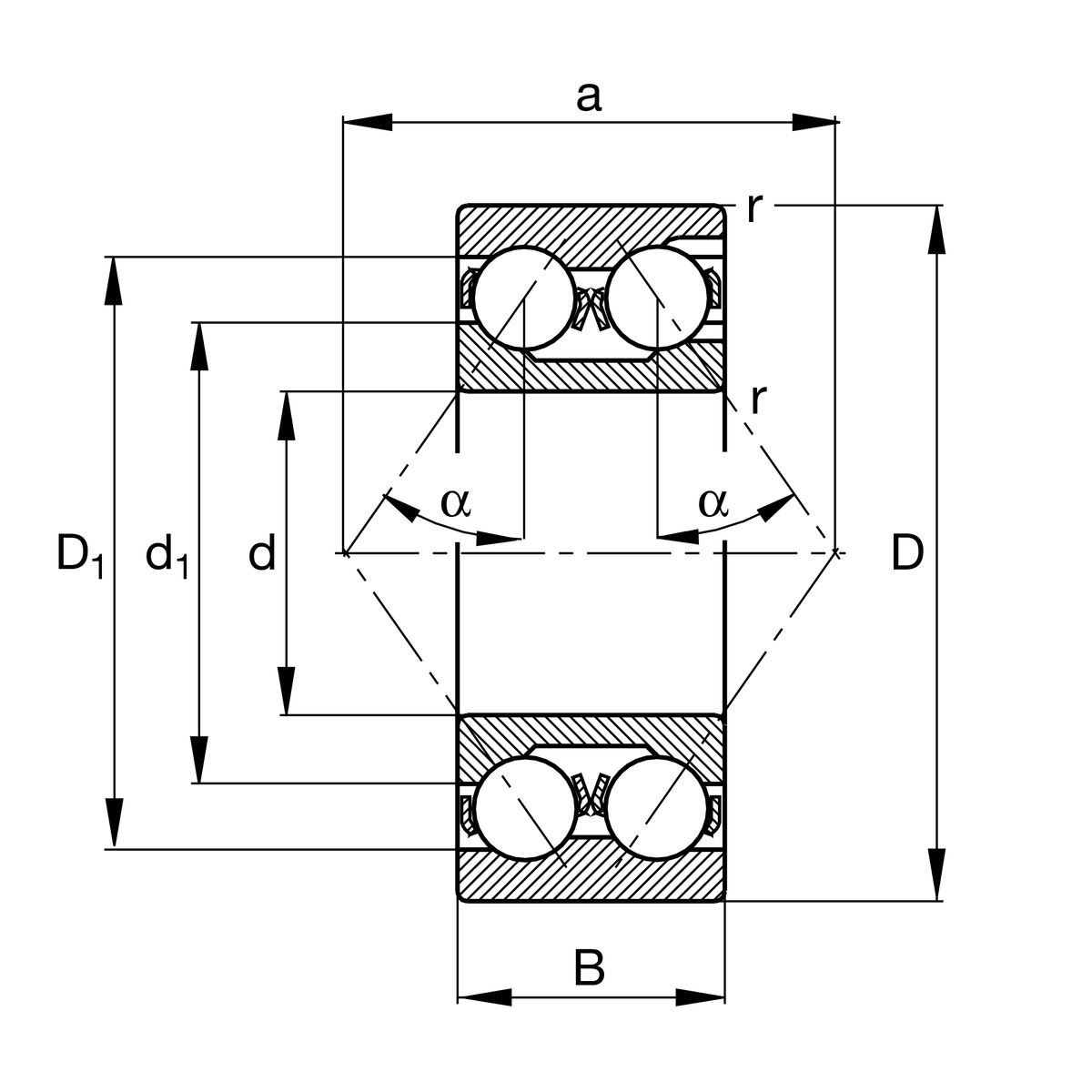

D1
|
163.7 mm
|
Inner ring rib diameter
|
Da max
|
168 mm
|
Maximum diameter of housing shoulder
|
ra max
|
2.1 mm
|
Maximum pocket radius
|
d1
|
131 mm
|
Inner ring rib diameter
|
a
|
127.4 mm
|
Pressure cone tip distance
|
α
|
35 °
|
Contact angle
|
