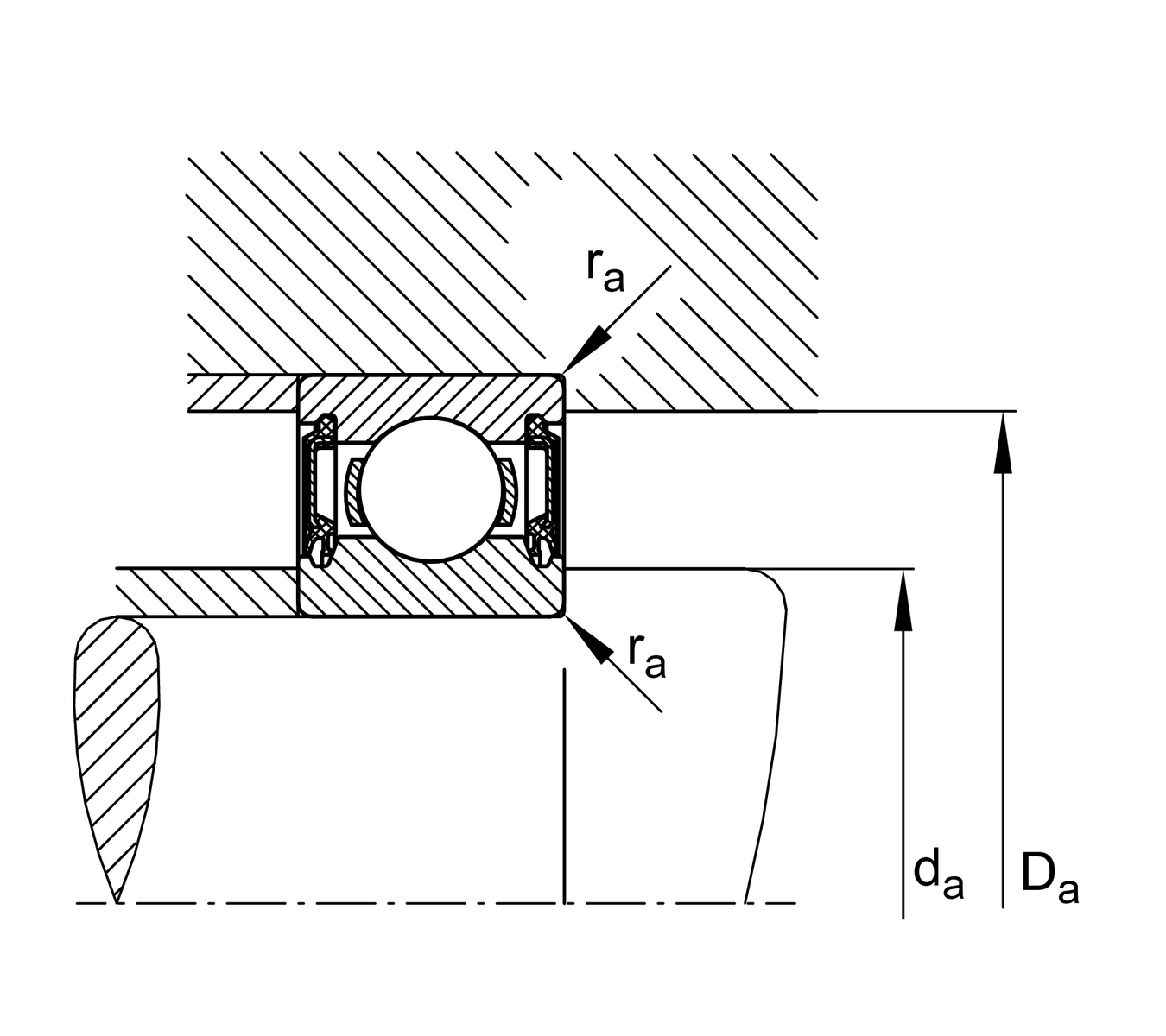

da min
|
32 mm
|
Minimum diameter of shaft shoulder
|
rmin
|
1.1 mm
|
Minimum chamfer size
|
Da max
|
55 mm
|
Maximum diameter of bearing block shoulder
|
ra max
|
1.1 mm
|
Maximum cavity radius
|

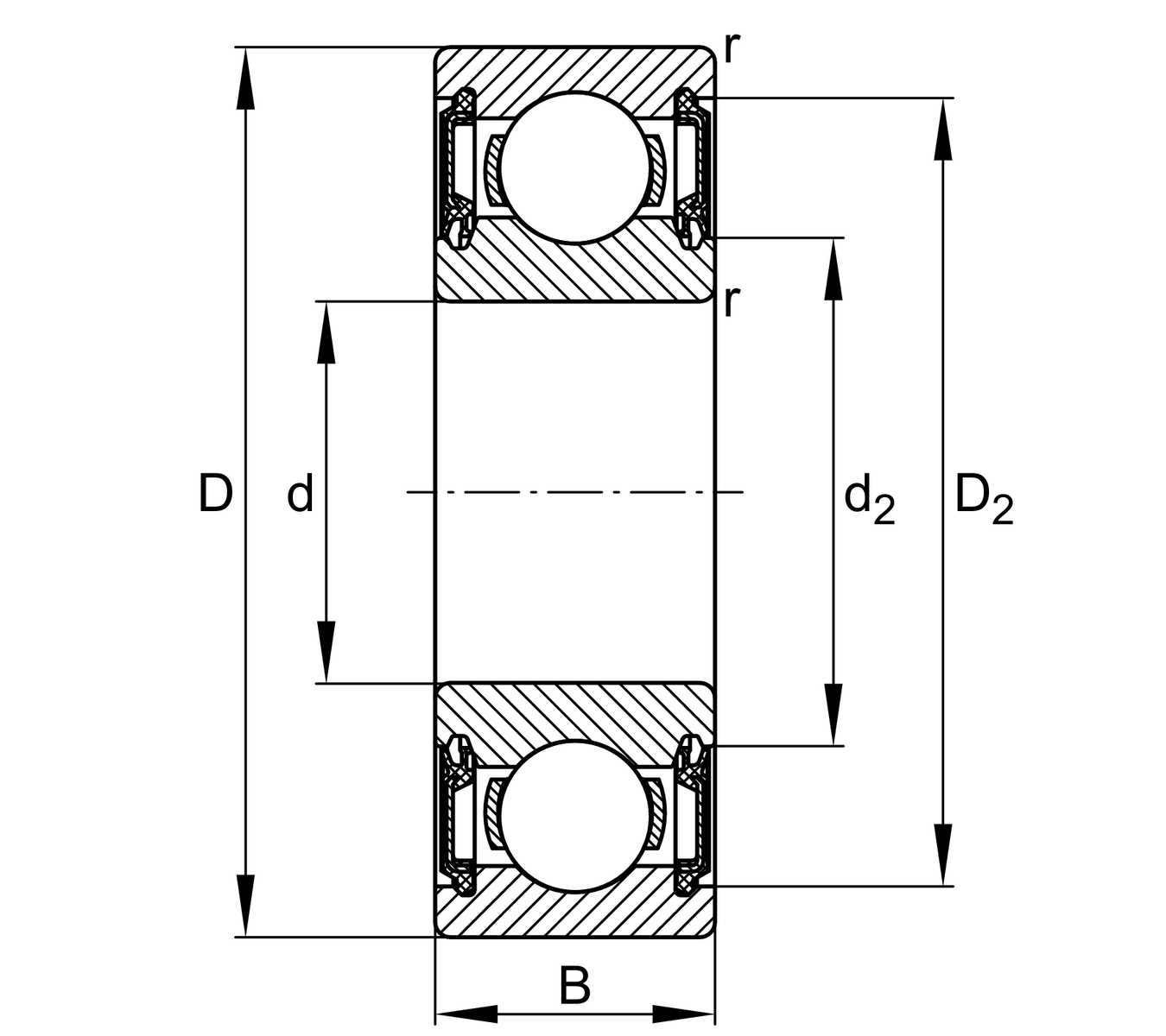

D2
|
54 mm
|
Inner diameter from recess to outer ring
|
d2
|
34 mm
|
Thrust washer diameter
|
