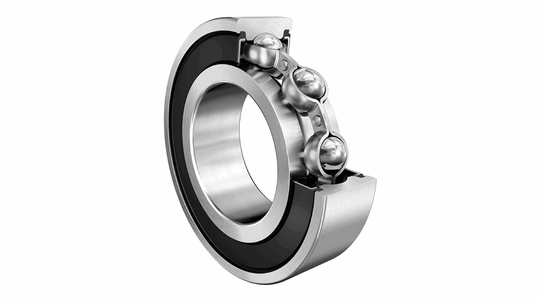

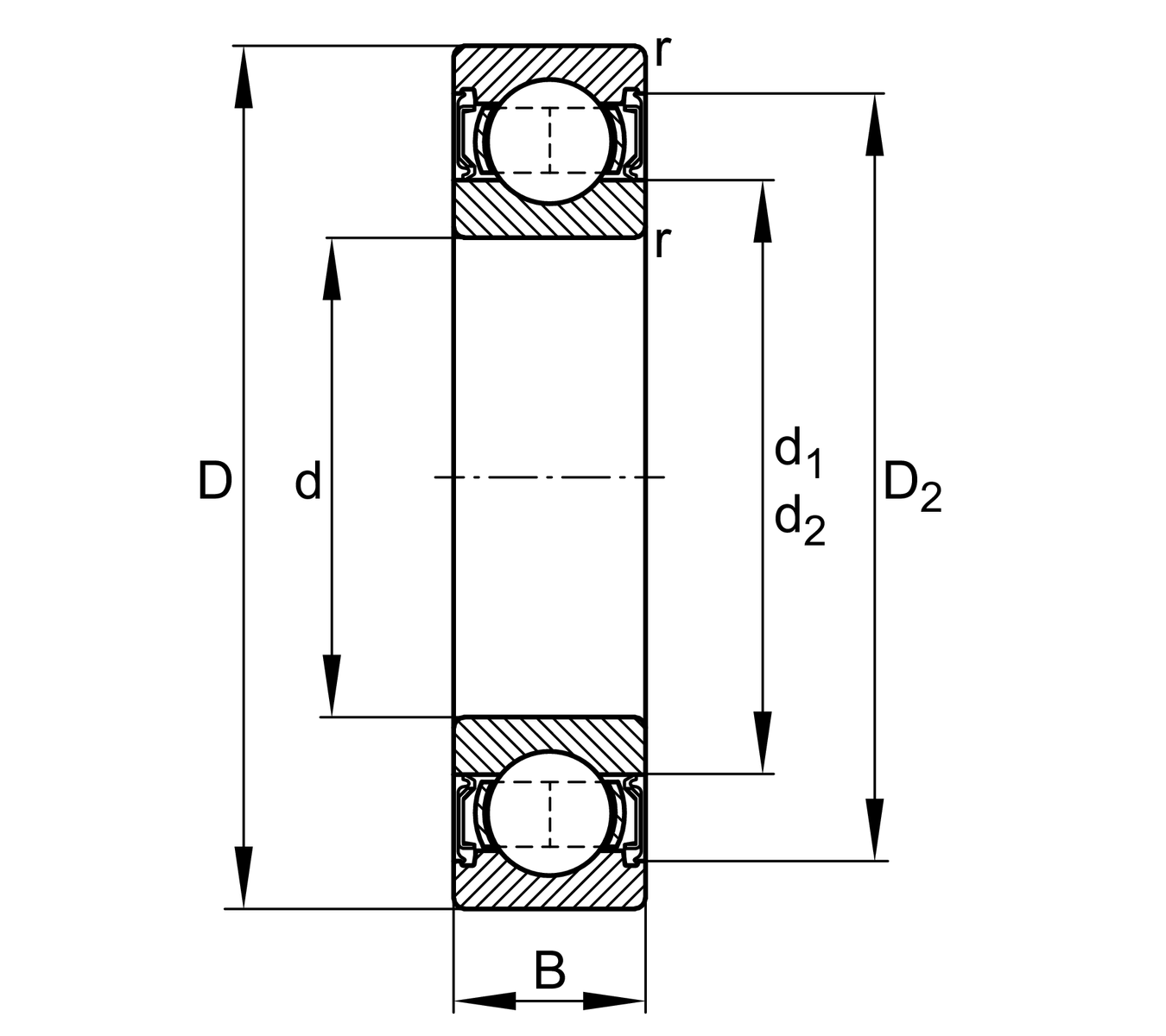

Main Dimensions & Performance Data

d

20 mm

D

42 mm

B

12 mm

Cr

10000 N

Cor

5000 N

Cur

290 N

Limiting speed

10100 rpm

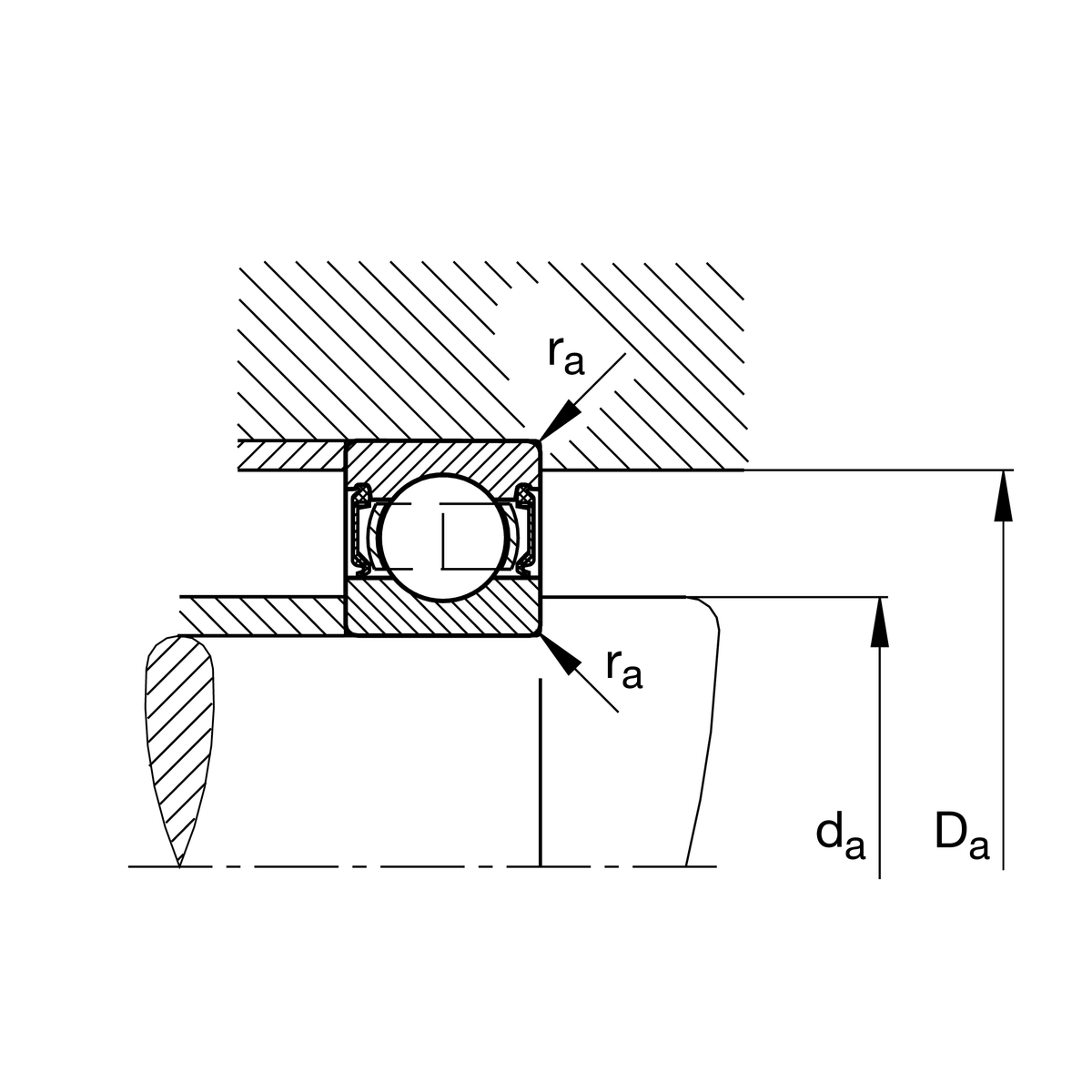

Mounting dimensions

da min

27 mm Minimum diameter of shaft shoulder

rmin

1.1 mm Minimum chamfer size

D1

42.3 mm Inner ring flange diameter

Da max

45 mm Maximum diameter of bearing block shoulder

d1

31.5 mm Inner ring flange diameter

ra max

1 mm Maximum cavity radius

Temperature range

Tmin

-20 °C Minimum operating temperature

Tmax

120 °C Maximum operating temperature

Calculation coefficient

f0

13 Calculation coefficient
