Main Dimensions & Performance Data

d

 635 mm

d(Inch)

 635 Inch

D

 685.8 mm

B

 25.4 mm

Cr

 68000 N

Cor

 174000 N

Limiting speed

 780 rpm

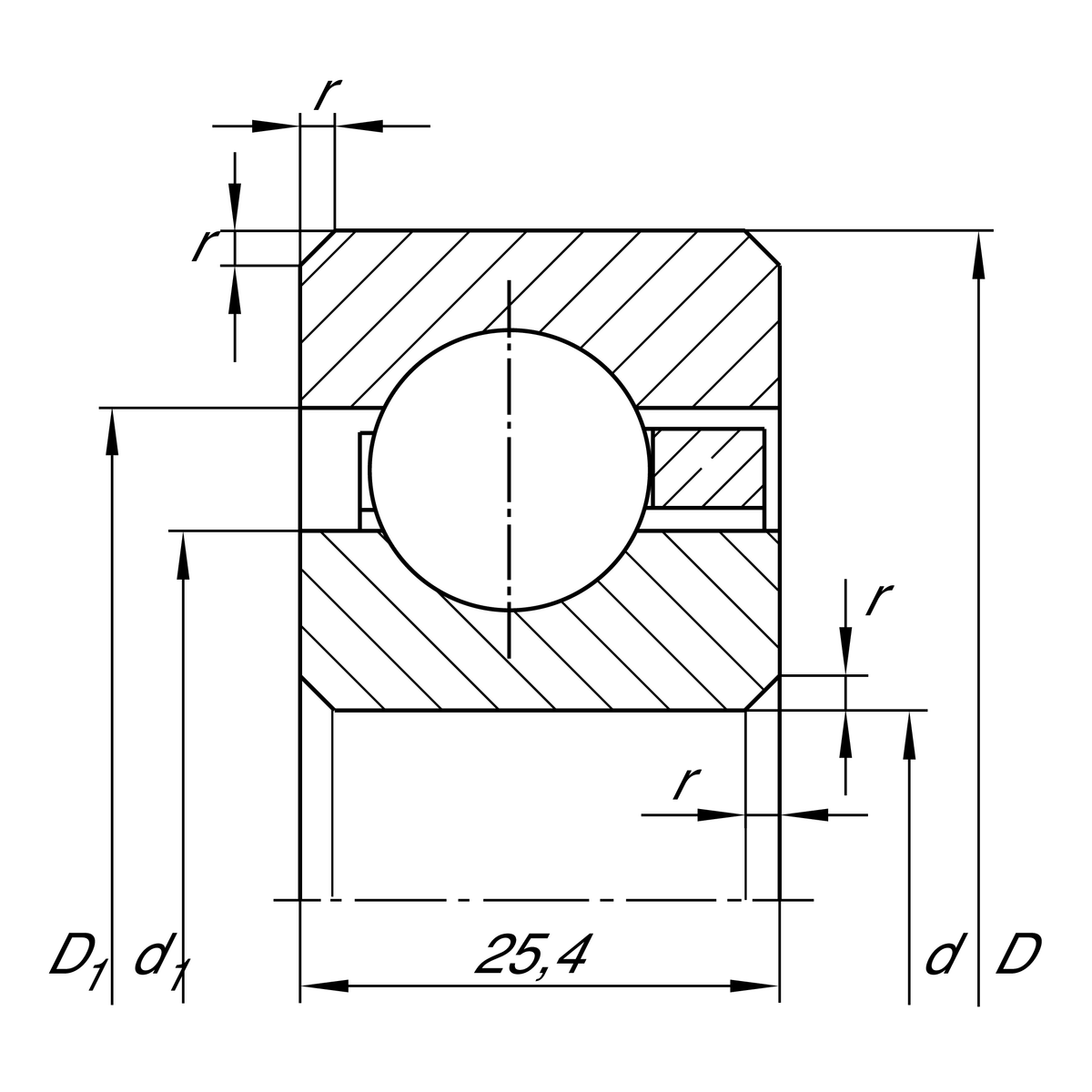

Mounting dimensions

r min

 2 mm Minimum chamfer dimension ,

d 1

 653.9 mm Shoulder diameter inner ring

D 1

 667 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
