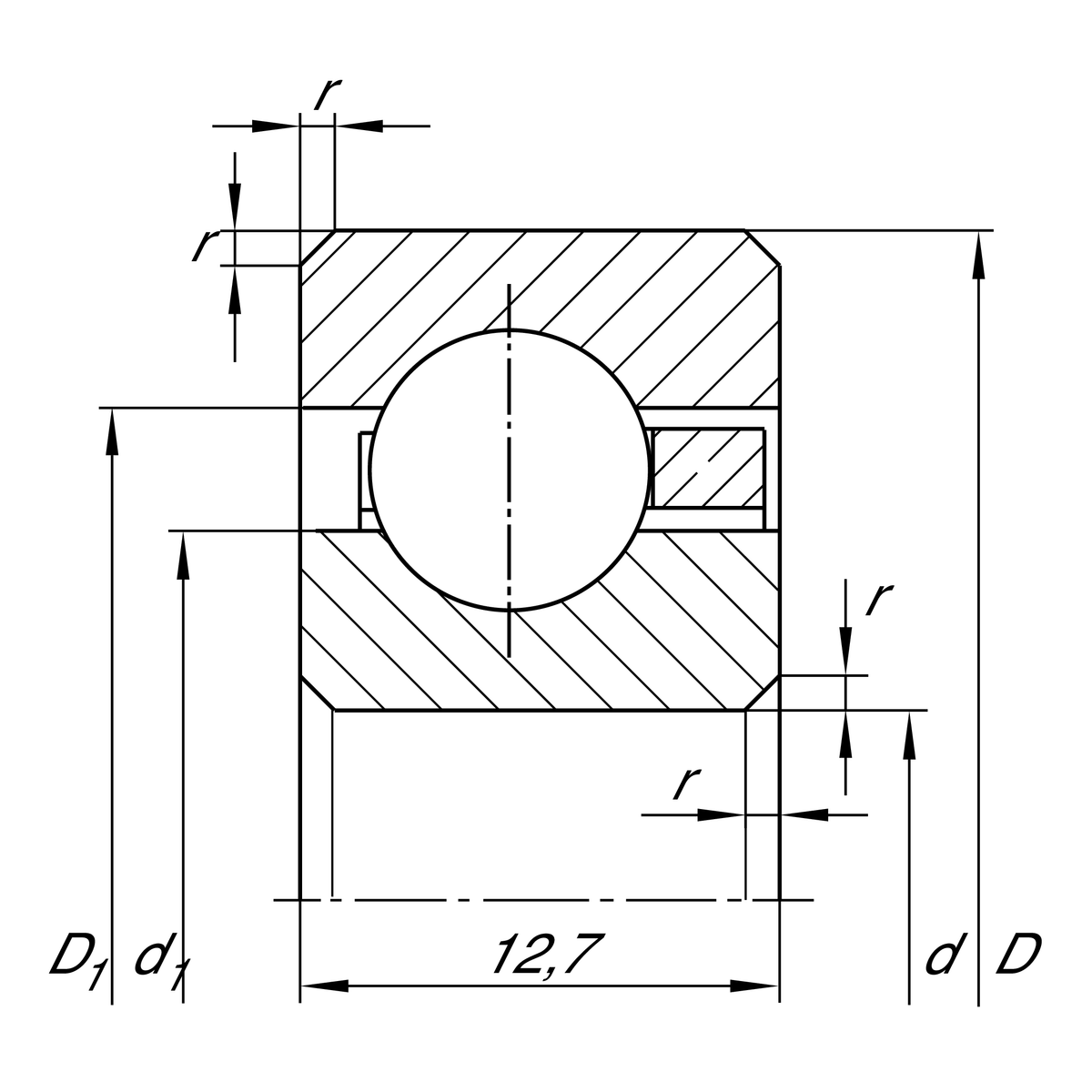

Main Dimensions & Performance Data

d

 355.6 mm

d(Inch)

 355.6 Inch

D

 381 mm

B

 12.7 mm

Cr

 18100 N

Cor

 40500 N

Limiting speed

 1470 rpm

Mounting dimensions

r min

 1.5 mm Minimum chamfer dimension ,

d 1

 365 mm Shoulder diameter inner ring

D 1

 371.6 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
