Main Dimensions & Performance Data

d

 304.8 mm

d(Inch)

 304.8 Inch

D

 317.5 mm

B

 6.35 mm

Cr

 6200 N

Cor

 15300 N

Limiting speed

 2780 rpm

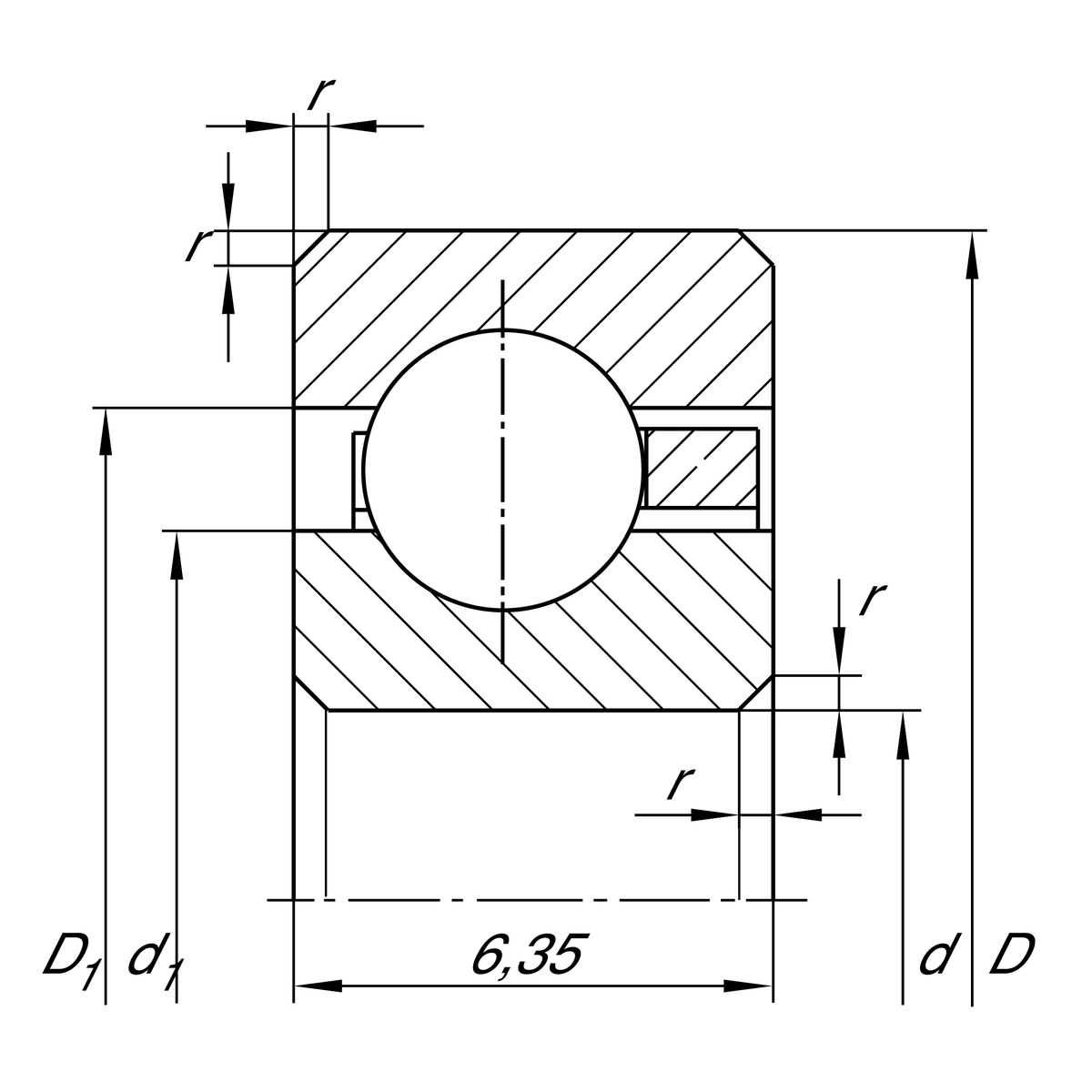

Mounting dimensions

r min

 0.6 mm Minimum chamfer dimension ,

d 1

 309.5 mm Shoulder diameter inner ring

D 1

 312.8 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
