Main Dimensions & Performance Data

d

 76.2 mm

d(Inch)

 76.2 Inch

D

 92.075 mm

B

 7.938 mm

Cr

 5500 N

Cor

 5200 N

Limiting speed

 6900 rpm

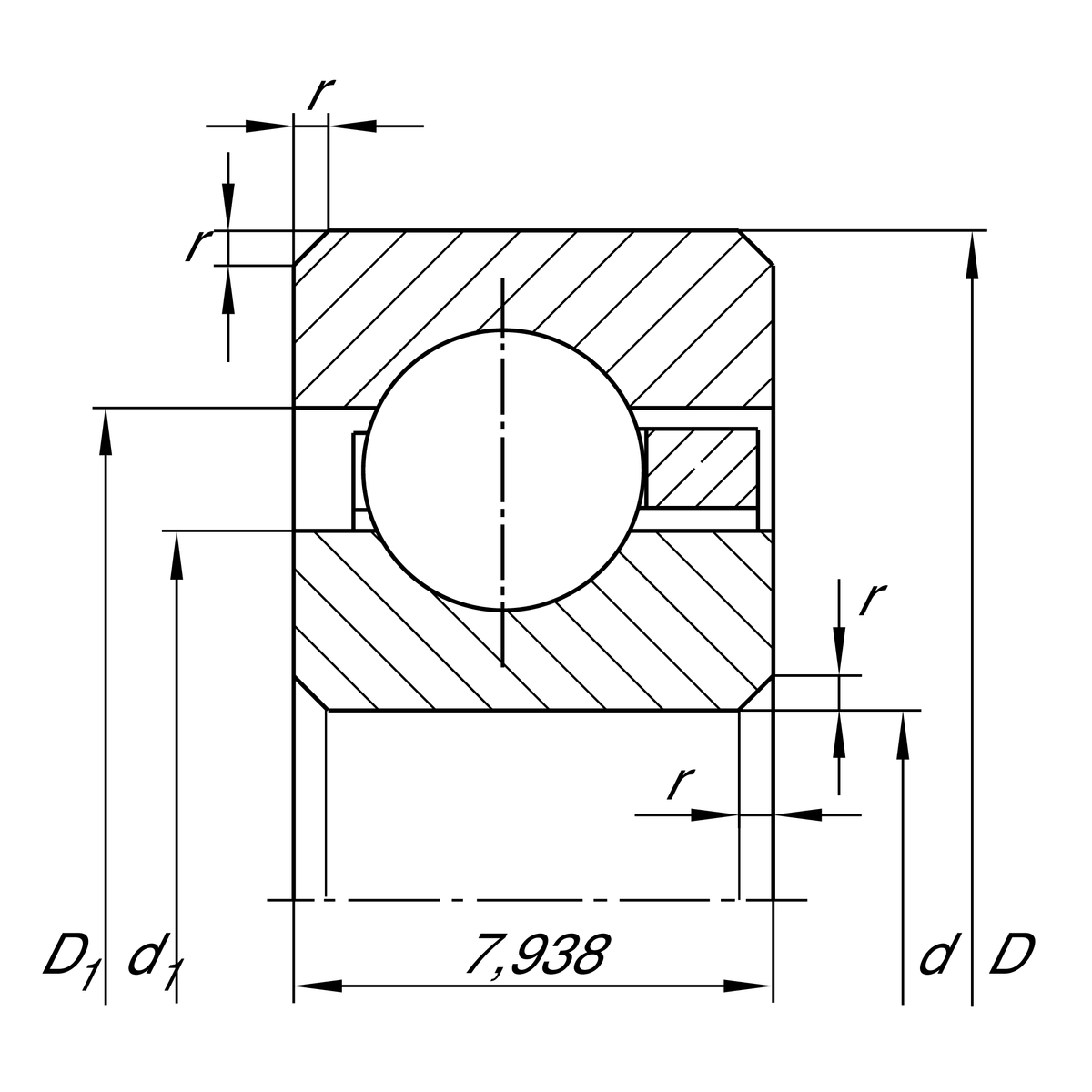

Mounting dimensions

r min

 1 mm Minimum chamfer dimension ,

d 1

 82.1 mm Shoulder diameter inner ring

D 1

 86.2 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
