Main Dimensions & Performance Data

d

 38.1 mm

d(Inch)

 38.1 Inch

D

 47.625 mm

B

 4.763 mm

Cr

 2020 N

Cor

 1540 N

Limiting speed

 14100 rpm

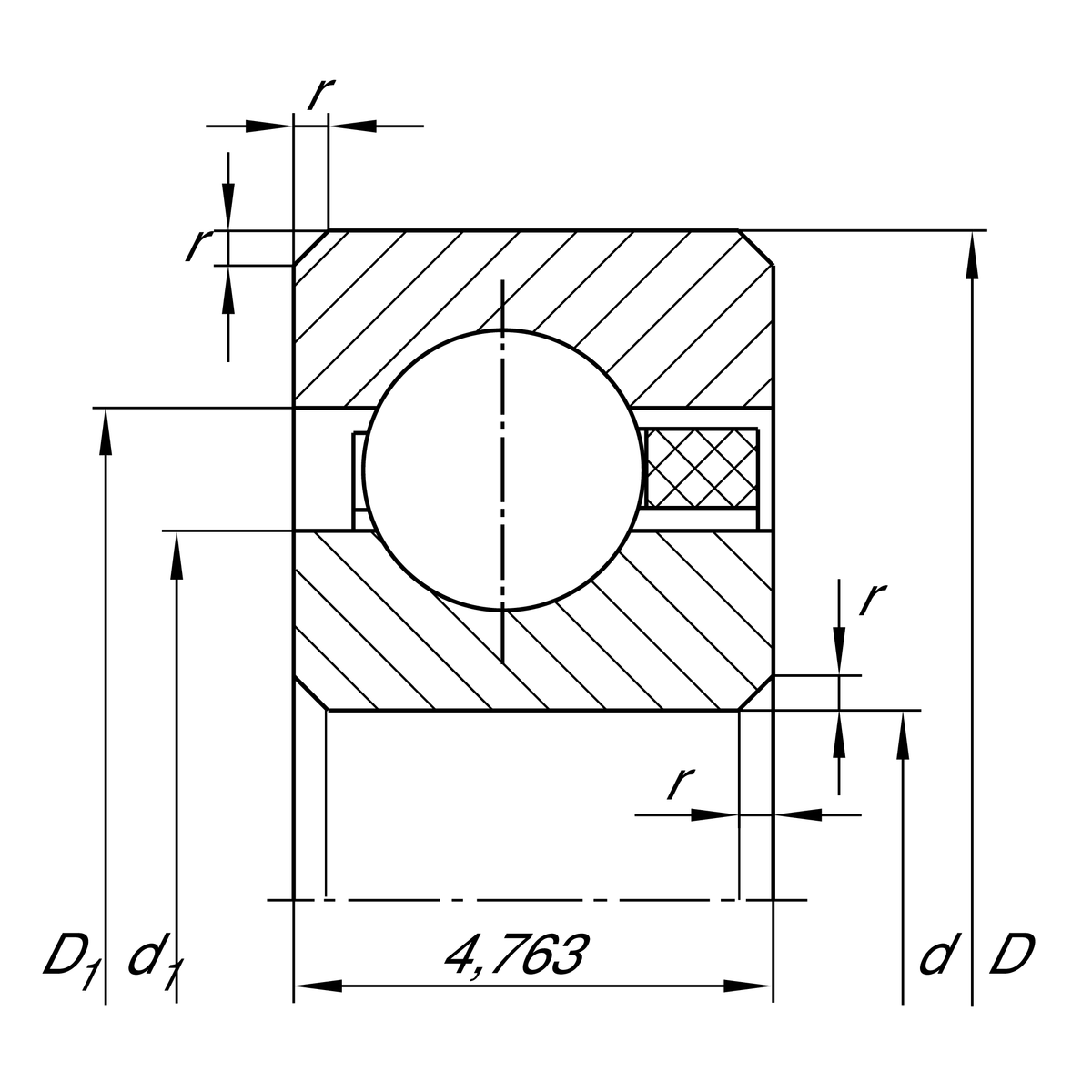

Mounting dimensions

r min

 0.38 mm Minimum chamfer dimension ,

d 1

 44.1 mm Shoulder diameter inner ring

D 1

 47.1 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
