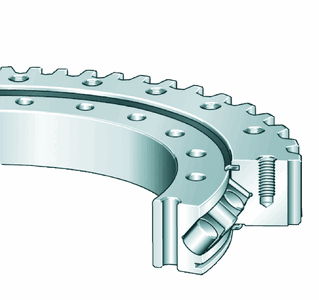

ha
|
44.5 mm
|
Width outer ring
|
La
|
985 mm
|
Pitchcircle diameter fixing holes outer ring
|
na
|
40
|
Number of fixing holes in outer ring
|
b
|
44.5 mm
|
Width gearing
|
m
|
8 mm
|
Modul of gearing
|
z
|
129
|
Number of teeth
|
d0
|
1,032 mm
|
Pitch circle diameter gearing
|
Fz norm
|
28,300 N
|
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
|
Fz max
|
42,000 N
|
Max. tooth force against tooth fracture (at a shock factor of 1,35)
|
da
|
943 mm
|
Outside diameter inner ring
|
|
0 mm
|
Outside diameter inner ring upper tolerance
|
|
-0.7 mm
|
Outside diameter inner ring lower tolerance
|
h
|
44.5 mm
|
height of individual ring
|
dB
|
14 mm
|
Fixing bore
|
Li
|
898 mm
|
Pitchcircle diameter fixing holes inner ring
|
ni
|
44
|
Number of fixing holes in inner ring
|
|
M12
|
Tread fixing bore
|
tG
|
20 mm
|
Thread depth oil connector
|
|
0.06 mm
|
Running accuracy A (related to the raceway)
|
|
0.06 mm
|
Running accuracy B (related to the raceway)
|
|
0.09 mm
|
Running accuracy C (related to the raceway)
|
|
0.09 mm
|
Running accuracy D (related to the raceway)
|
